Insulated Roller Garage Doors

Cornell is the leading manufacturer of overhead insulated doors, rolling garage doors, security doors, fire doors and security grilles

When you want the best insulated overhead door for your building, insulated roller garage doors from Cornell Iron are the natural answer.

Insulated roller garage doors provide a barrier against the elements by manufacturing a closed pressure foam interior inside the door curtain. These doors are made from slats of formed galvanized steel, aluminum or stainless steel that coil above an opening, plus an environmental separation is formed when combined with a door perimeter seal.





Overhead Door Standard Drawings

Overhead door materials and finishes

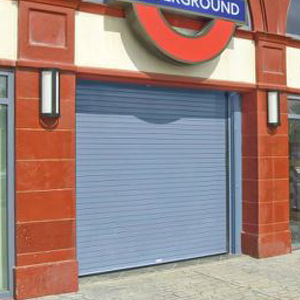

Overhead insulated rolling doors can be manufactured using a variety of metals including steel, galvanized steel, stainless steel and aluminum.

Insulated roller garages doors metals have a variety of finishes to choose from including:

  • Galvanex galvanized dual process treatment
  • Spectrashield powder coat, that uses our state of the art automated overhead door powder coating process
  • Atmoshield, our long lasting, heavy duty powder coating option for maximum durability



Click here for more Insulated Roller Door Features.

Energy Efficient Rolling Doors = Money Savings

When you need climate control and security with the compact storage of an overhead coiling door, our Thermiser insulated roller garage door is a perfect choice.  Our overhead coiling doors are manufactured roll formed metal slats, then the double skinned interlocking rolling door slats are filled with chlorofluorocarbon-free (CFC), closed pressure foam to create a high energy efficient exterior door barrier.

Plus, our Thermiser insulated roll up garage doors use a sealing system to prevent air infiltration or air leakage around the perimeter of the door. ASHRAE 90.1 requires an air infiltration rate of less than .4 CFM/FT2 and the 2015 International Energy Conservation Code (IECC) requires air infiltration of less than 1.0 CFM/FT2 for coiling doors at openings that separate with conditioned space from the exterior.

money savings insulated door



The above calculation is approximate and based on one 12’ x 12’ opening comparing an insulated service door with thermally broken guides and full perimeter seals (that meet the air infiltration requirements of ASHRAE 90.1 and IECC 2015 to the specified product.




Insulated Roller Garage Doors Hangar

insulated garage doors St. Mary's Hospital MO - Dock



Insulated Roller Garage Doors Yellow

Custom Features

There are many options and upgrades for all insulated roller garages doors

  • Seismic Performance Validation: We can provide project specific seismic calculations for all Thermiser or Thermiser Max insulated coiling doors mounted Face of Wall or Between Jambs to steel or masonry.
  • Operation: Hand chain, hand crank and motors are available based on size, weight or frequency of operation.
  • Combination Doors: Combine two different curtains on the same opening. Typically an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, superimposed/double insulated curtain assemblies can be used.
  • Sloping or Irregular Sills: Special bottom bar designs can meet odd floor conditions including slopes, curbs or rails.
  • Specified Wind Load: Doors can be configured to withstand the full range of specific wind load requirements, including missile impact ratings. Performance validated through third party testing.

specwriting

Not sure which door is right for you? Our Rolling Door Support team can help you find the right door along with architectural drawings, engineering needs, codes, specifications or any door question you may have.
