Insulated Rollup Counter Door | Cornell Iron

Counter Door

Model Number: ESC30

The Insulated Rollup Counter Door is the first of its kind, delivering robust security and superior thermal insulation in a single, compact system. This industry-first performance is achieved through a patented design that utilizes a PVC back slat, securing high-performance melamine foam insulation within the curtain. This construction provides excellent climate control and sound attenuation. It’s the ideal solution for cafeterias, stadiums, and healthcare facilities where environmental separation is non-negotiable.

Beyond its thermal capabilities, the Insulated Rollup Counter Door features a polished design, presenting a clean and uniform facade. Engineered for durability, it can be configured to withstand a general wind load of 25 psf. Every door is built to order, ensuring a perfect fit for your opening, and can be specified with a variety of finishes to seamlessly integrate with your building's architecture.

For additional design help, browse our Architect Portal for various useful resources.

Need A Dealer Need Design Help

Benefits of the Cornell Insulated Rollup Counter Door

The Cornell Insulated Rollup Counter Door offers features that set it apart as a top choice for locations that need insulated closures. With the Insulated Rollup Counter Door, your business will benefit from:

Reliable security: The Insulated Counter Door features durable materials that allow it to maintain peak functionality through daily use. Your door's steel brackets and curtain will prevent intrusion, theft, and vandalism night after night.
Low-noise operation: The Insulated Counter Door allows for a Sound Transmission Class (STC) rating of 26 for the entire assembly, making it ideal for finished openings that require an insulated closure. The PVC back slat eliminates metal-to-metal contact, reducing operational noise and preserving the life of the finish.
Lower energy costs: The Insulated Counter Door's GalvaNex™ polyester enamel helps to maintain climate consistency in your store. With this counter shutter, you'll spend less to heat or cool your indoor or outdoor storefront.

Why Choose Cornell for Counter Shutters?

When you need counter doors you can trust for optimum security and a tailored fit, choose Cornell, one of the nation's most reliable manufacturers. Our designers create counter shutters like the Insulated Rollup Counter Door to be useful and easy to install in various applications. We'll work with you to customize an Insulated Counter Door that blends with your building and matches your organization's identity. For additional design help, browse our Architect Portal for various useful resources.

Usage

Our Insulated Rolling Counter Door are constructed for daily use.

Materials & Finishes

Comes standard in galvanized steel with Galvanex polyester enamel finish in gray, tan, white or black. Also available in clear anodized aluminum, stainless steel – 300 series in # 4 finish and with SpectraShield powder coating in more than 180 colors.

Operators

Available with hand-crank, push-up and a variety of motor operations.

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Learn More

Aesthetics

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Learn More

Finishes Colors & Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Performance Upgrades

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Learn more.

Insulated Counter Door Windload Options

Can be configured to withstand a general windload of 25 psf.

Safety & Protection

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

SmartSync Wireless Safety Edge

SmartSync™ Wireless Safety Edge & Wireless Remote Controller

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*
*Not compatible with NEMA 7/9 operators
Learn more.

Technical Data Sheets

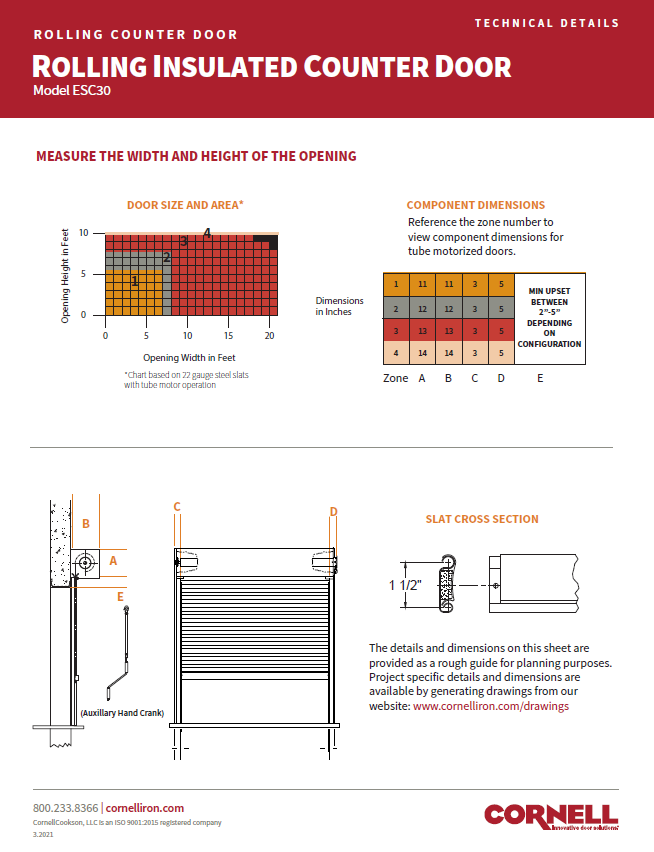

Insulated Counter Door Technical Details

Specification Sheets

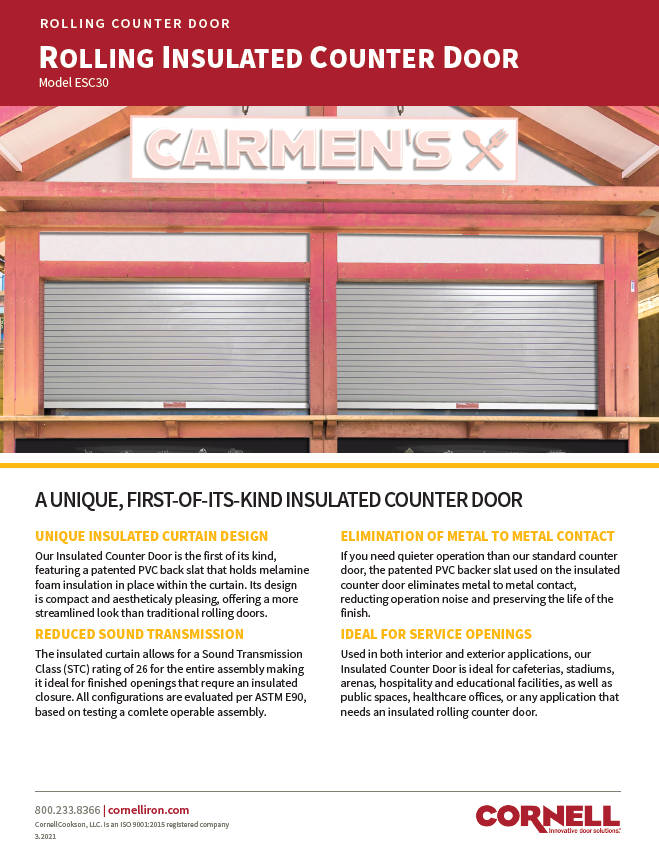

Insulated Counter Door Specification

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Counter Door Drawing Generator
Counter Door with Integral Frame Drawing Generator
