High-Cycle Products

Designed for business in motion, our high-cycle doors and grilles are built for the long haul. Our tailored solutions deliver impressive operational flexibility, making them an ideal fit for a wide range of applications, including warehouses and manufacturing plants, cold storage facilities and parking garages, and more. Our lineup of high cycle door and grille systems features unmatched cycle longevity, low lifetime maintenance, and springless engineering for the lowest cost of ownership in the industry.





High-Cycle Doors and Grilles

Our lineup of high cycle door and grille systems features unmatched cycle longevity, low lifetime maintenance, and springless engineering for the lowest cost of ownership in the industry.

Built for a wide range of applications, you’ll find a solution to match the speed and pace of your business. From the openings requiring economical, standard operation with great cycle life, to the most traffic heavy openings in need of high-performance and rapid operation, you’ll find an expertly crafted Cornell door or grille to meet, and exceed, your expectations.

High-Cycle, Standard Speed

These high-performance doors and grilles offer continuous-duty cycle performance and are engineered for applications where high speed isn't required. The TruCycle™ High-Cycle, Standard Speed Door and TruCycle™ High-Cycle Security Grille operate at standard speeds, are designed without springs to virtually eliminate downtime, and are backed by our industry-leading warranties for a lifetime value that is hard to beat.

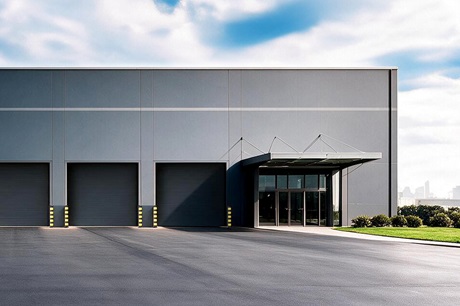

TruCycle™ Commercial Service Door (Model HCESD10 / Insulated HCESD30)

  • Duty Rating: High-Cycle / Springless
  • Cycle Rating: Guaranteed 3-Year or 500,000-Cycle Warranty
  • Speed: Controlled standard operating speed
  • Capabilities: Direct-drive motor with motor-mounted VFD that pairs with the APEX™ Core SmartController, spring-free design, optional Energy-Efficient Air Infiltration Package (reduces air infiltration by up to 94% compared to standard doors).

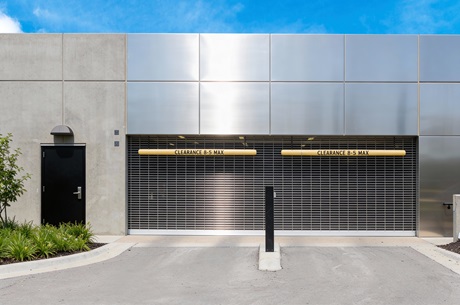

TruCycle™ High-Cycle Security Grille (Model HCESG10 / HCESG12)

  • Duty Rating: High-Cycle / Springless
  • Cycle Rating: Guaranteed 3-Year or 300,000-Cycle Warranty
  • Speed: Smooth, controlled standard operating speed
  • Capabilities: Springless design for long-lasting, low maintenance performance; available in straight or brick curtain patterns; balances security, ventilation, and effortless ground-level commissioning with the APEX™ Core SmartController.





High-Performance, Higher-Speed

Need speed and extended cycles for busy openings? Consider our high-performance, higher speed doors and grilles. Ideal for critical high traffic openings, including fire stations, parking garages, EMS bays, auto dealerships, and more that rely on rapid open/close cycles, our Extreme® Series delivers reliable operating speeds up to 24 inches per second with industry-leading cycle ratings.

Extreme® Series High-Performance Sectional Door (Models EX904L, EX3100L, EX3200L, EX3700L)

  • Duty Rating: High-Speed / Heavy-Duty
  • Cycle Rating: 50,000 cycles / up to 600 cycles per day
  • Speed: Opening speeds up to 24 ips / closing 15 ips
  • Capabilities: Rapid cycling (3X faster opening, 2X faster closing than standard sectional doors), direct-drive operator with built-in Wi-Fi.

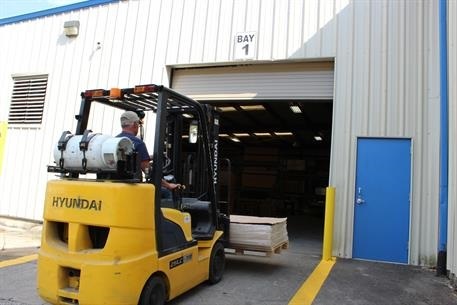

Extreme® 300 Series High-Performance Rolling Door (Model EPD 300 / Insulated EPI 300)

  • Duty Rating: High-Speed / High-Cycle
  • Cycle Rating: 300,000 maintenance-free open/close cycles
  • Speed: Opening speeds up to 24 ips
  • Capabilities: Springless direct-drive APEX Pro SmartController™ delivers intelligent soft start/stop, insulated model EPI 300 includes Thermiser Max™ Perimeter Sealing System.

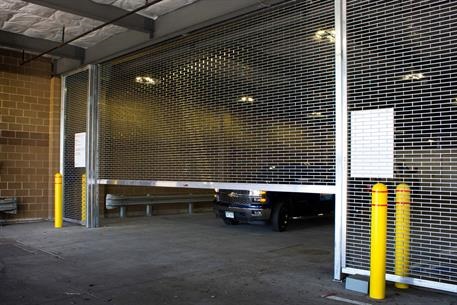

Extreme® 300 Series High-Performance Security Grille (Models EPG324, EPG324B)

  • Duty Rating: High-Speed Security / Parking Garages & High-Traffic Openings
  • Cycle Rating: 300,000 Maintenance-Free Cycles
  • Speed: 3x faster than conventional rolling grilles (up to 24 ips open / 12 ips close)
  • Capabilities: Compact headroom engineering, continuous-duty rated.

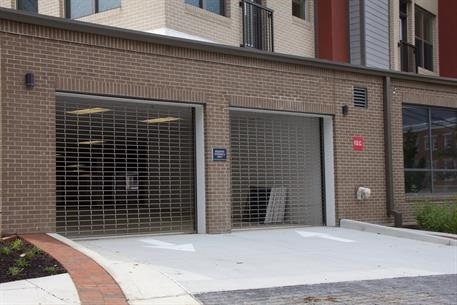

Extreme® High Performance MicroCoil® Grille (Models EPG324C, EPG324CB)

  • Duty Rating: High-Speed Security / Parking Garages
  • Cycle Rating: 500,000 Maintenance-Free Cycles
  • Speed: Opening speeds up to 24 ips
  • Capabilities: Compact headroom requiring nearly 50% less compared to other high-cycle grilles, quiet nested-link operation, and direct-drive design, compatible with 120V service (with upgrade).

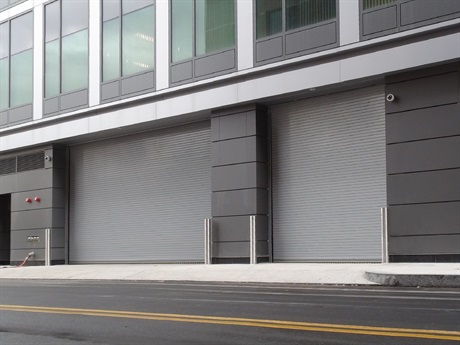

Extreme® 1024 High-Performance Rolling Door (Model EPD1024 / Insulated EPI1024)

  • Duty Rating: Maximum Cycle Longevity / High-Speed
  • Cycle Rating: Tested to Exceed 1-Million Operating Cycles (5-Year Warranty)
  • Speed: Opening speeds up to 24 ips
  • Capabilities: The industry benchmark for extreme duty; lowest lifetime cost of ownership; compatible with all commercial activation systems.



Find The Right Door: Standard, Extra Cycles, Or Extra Speed?

Different commercial openings require different solutions. Whether it’s basic security or reliable, low-maintenance cycle life, or rapid opening speeds for heavy use or climate control, use the comparison guide below to find the perfect match.

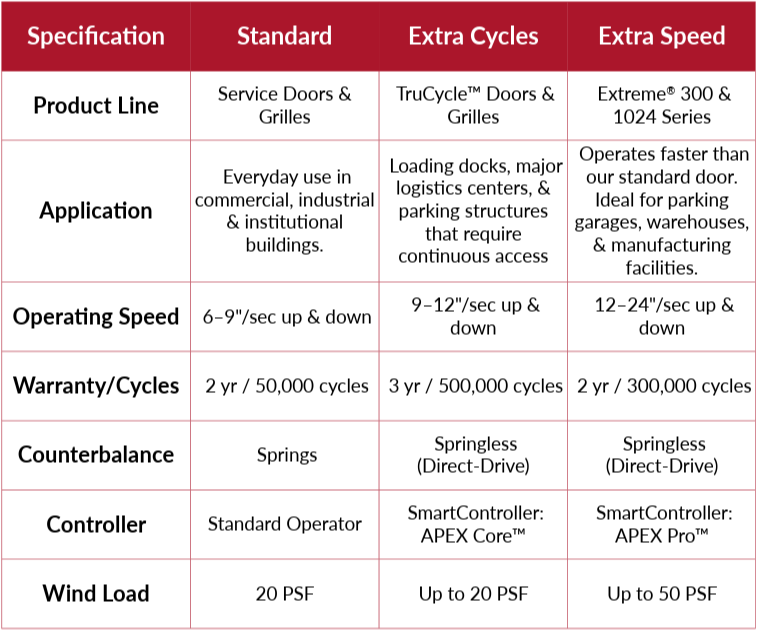

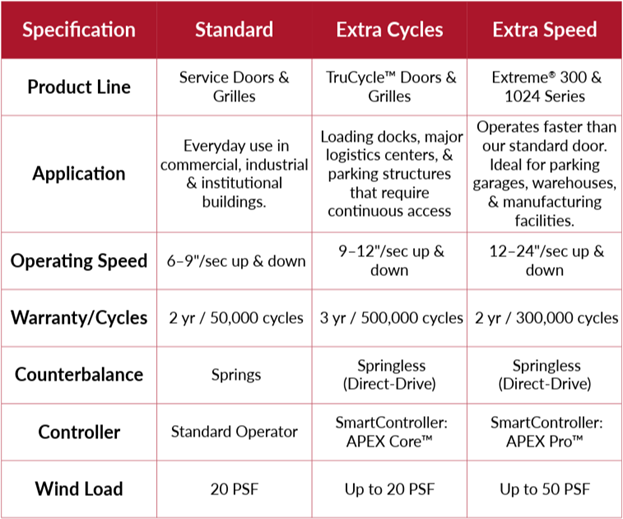

High Cycle Chart



Find a High-Cycle Door or Grille Today

Cornell high-cycle doors are recognized for extreme durability, springless direct-drive engineering, and reliable operation. Find and customize your commercial door or grille by talking to your local dealer.
