Parking Gate Systems and Security Grilles

Well-designed parking structures prioritize security and convenience for pedestrians and vehicles, all while balancing efficient traffic flow, accessibility, and maximizing space. High-performance rolling grille technology plays a major role in the most efficient parking garage systems.

The Cornell high-performance lineup for parking garages includes the Extreme® 300 Series Grille and MicroCoil Grille. From our roll-up security grille line, the 5015 Grille stands out with 50,000-100,000 maintenance-free cycles.

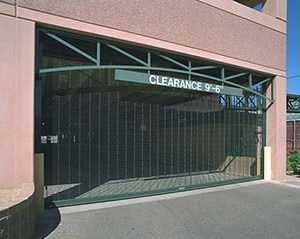

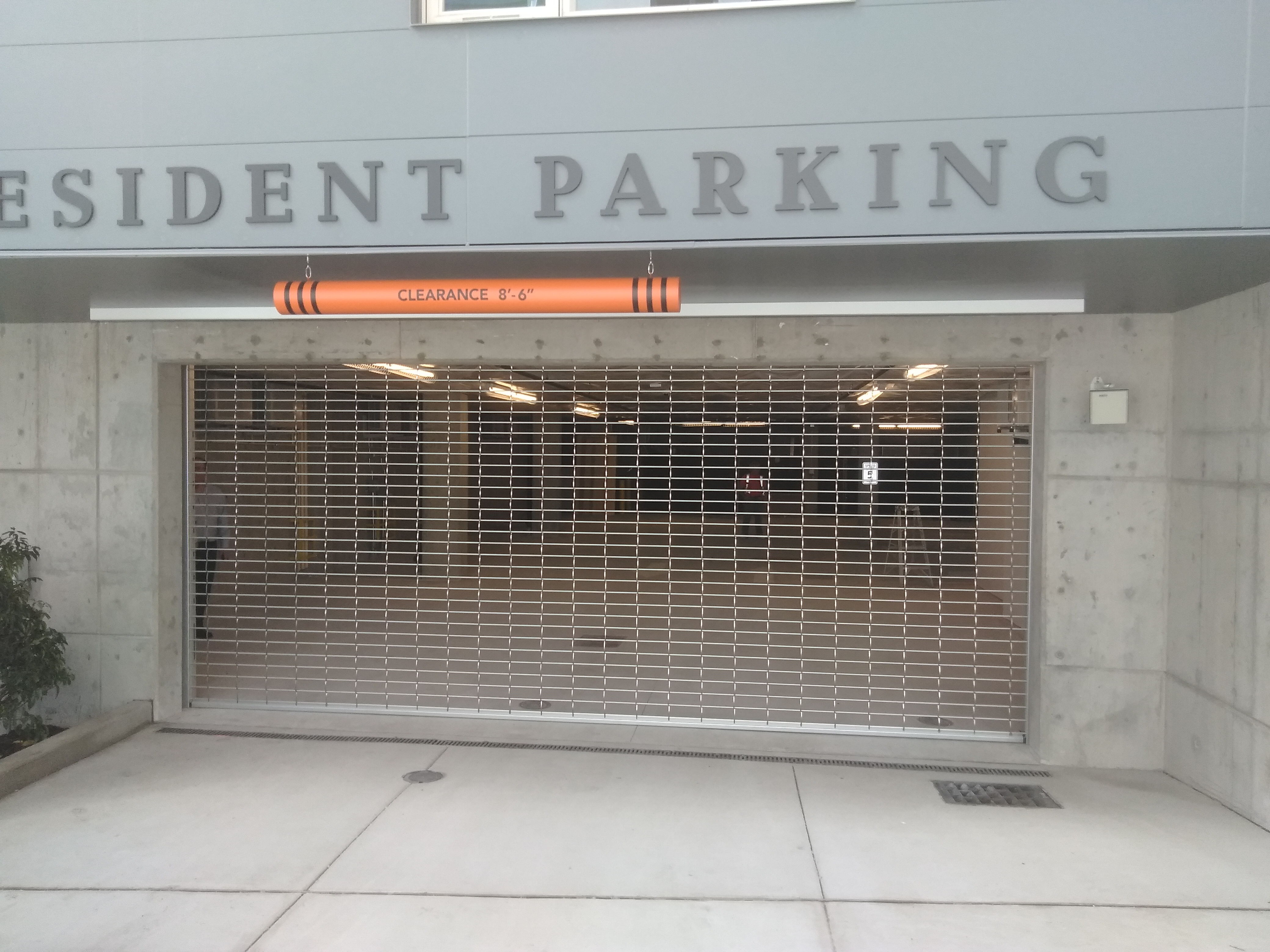

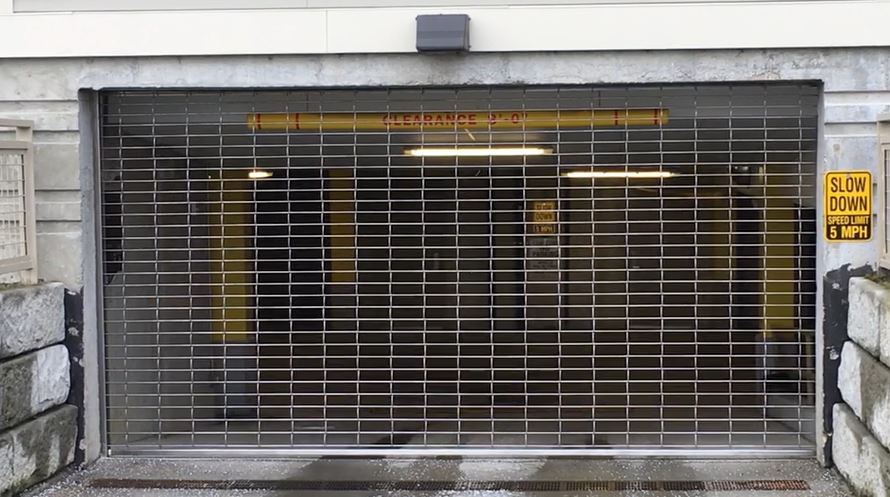

extreme high performance microcoil grille on a parking garage



Extreme® 300 Series Grille

Models: EPG324 and EPG324B

The Extreme 300 Series High-Performance Rolling Grille is a virtually maintenance-free option that operates up to three times faster than standard overhead coiling grilles. It comes equipped with the EuroDrive & Apex Pro SmartController™, an intelligent control panel featuring plug-and-play wiring, status messages, and worry-free commissioning.



Minimum Headroom: 23”
Speed: Opens up to 24 inches per second. Closes at 12 inches per second.
Warranty/Cycles: 2-Year / 300,000
Maximum Width: 30’
Maximum Height: 16’
Material/Finish: Aluminum (Mill, Clear, Bronze, and Black anodized)
Open Area: 76%
Patterns: Choose between brick or straight.
Electronic Autolock: Available
Wind Load: Not available

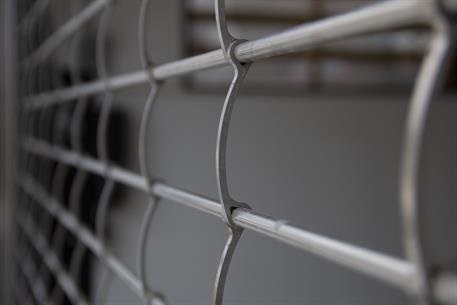

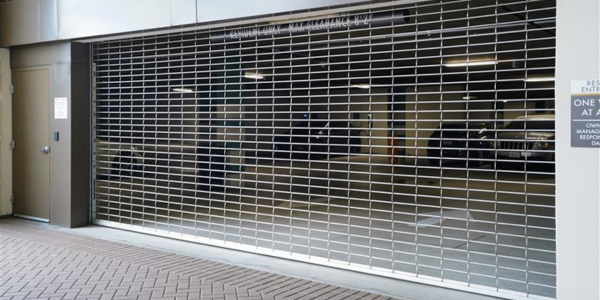

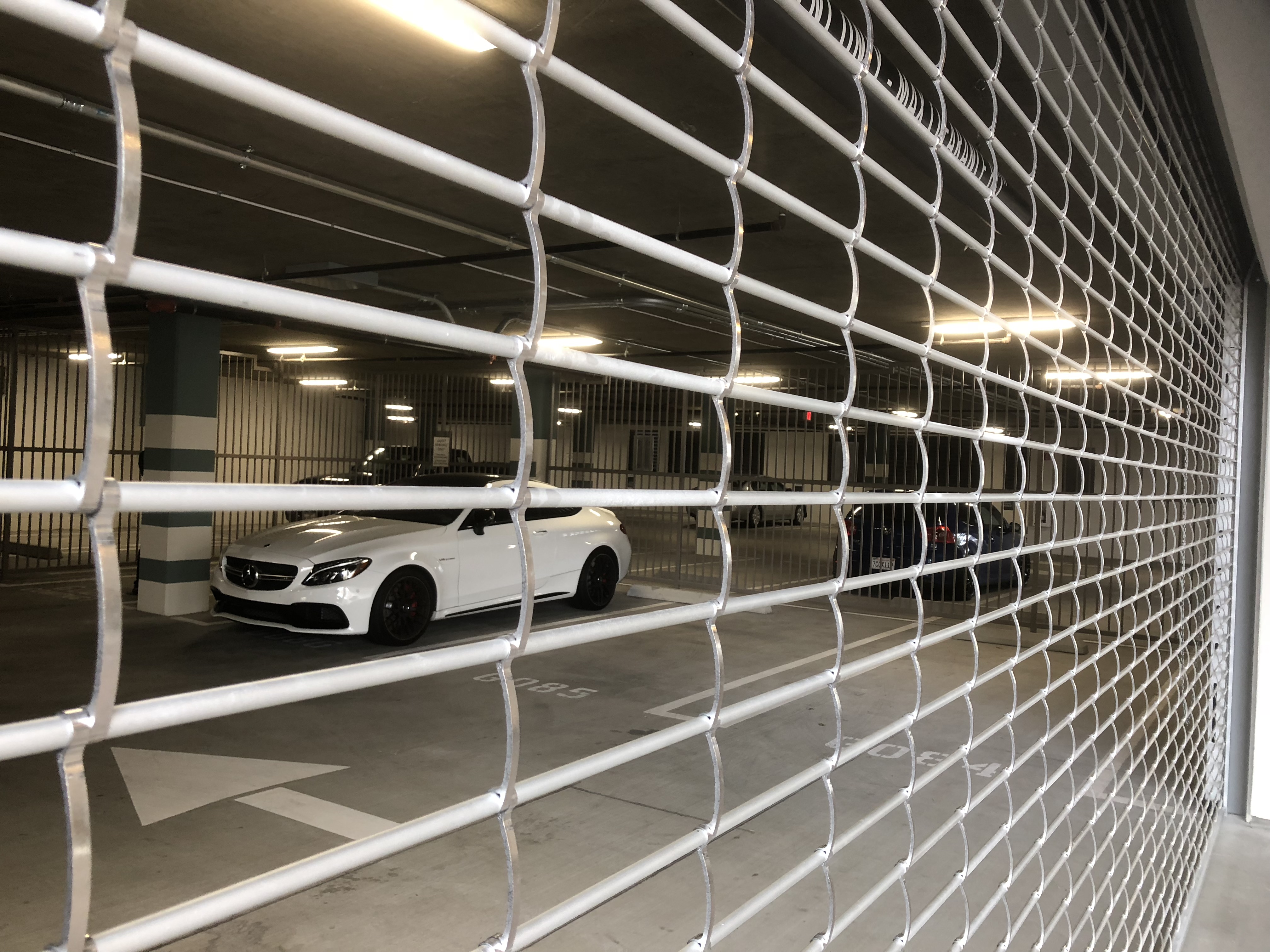

Extreme High Performance MicroCoil® Grille - 500K Cycles

Models: EPG324C & EPG324CB

The Extreme MicroCoil Grille requires nearly 50% less headroom than traditional security grilles. Its patented nested link system reduces noise and vibrations, making it one of the smoothest operating coiling grilles on the market. This model meets ADA Compliance requirements, making it an ideal fit for parking facilities. It also comes with the user-friendly EuroDrive & Apex Pro SmartController™ and a direct-drive operator.

Minimum Headroom: 16 ¾”
Speed: Opens up to 24 inches per second. Closes at 12 inches per second.
Warranty/Cycles: 2-Year / 500,000
Maximum Width: 26’
Maximum Height: 14’
Material/Finish: Aluminum and stainless steel.
Open Area: 82%
Patterns: Choose between brick or straight.
Electronic Autolock: Available
Wind Load: Up to 40 PSF







5015 Grille

Models: EPG324C & EPG324CB

Safeguard your parking facility with the 5015 Grille's durable construction. Built with closely spaced rods and links that are 50% heavier than standard grilles, the 5015 Grille ensures your business can confidently move forward. This robust grille is designed to be your first line of defense, with 50,000 cycles up to an available 100,000-cycle spring life and high-cycle shaft.

Minimum Headroom: 21”
Speed: Opens up to 8-12 inches per second.
Warranty/Cycles: 2-Year / 50,000 or 2-Year / 100,000
Maximum Width: 30’
Maximum Height: 20’
Material/Finish: Stainless Steel and Clear Anodized (6” & 9" Patterns Only)
Windows/Insulation: No windows or insulation available.
Patterns: Straight
Electronic Autolock: not available
Spring Required: yes

*Minimum headroom is based on a 10’x10’ closure, open area percentages are approximate, and PSF is based on door width.

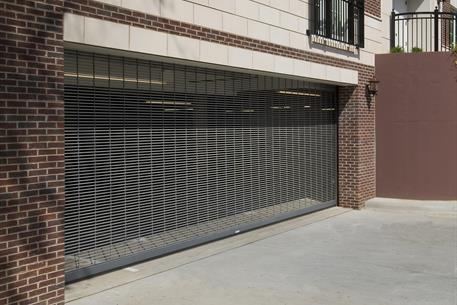

Croydon Condos Grilles 1 - 5015



Cookson LED Light Kit on Door

More awareness, less downtime.

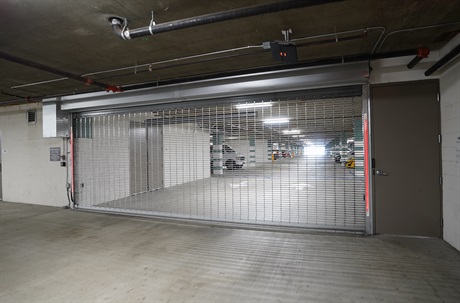

The LED Light Kit uses highly visible status indicators to alert drivers of the open or closed status of overhead grilles and doors. Designed for busy parking garage environments, the kit reduces the chances of damaged vehicles and openings.
