Extreme^® 300 Series High Performance Grille

Name: Extreme® 300 Series High Performance Grille
Brand: Cornell Iron

High Performance Security Grilles

Model Number: EPG324, EPG324B

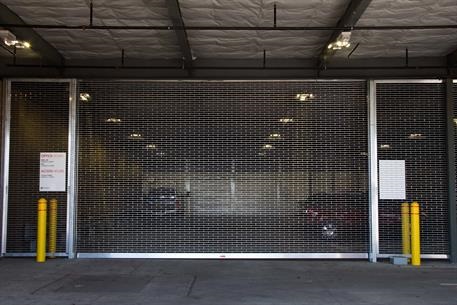

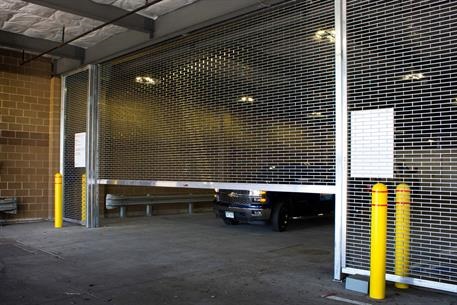

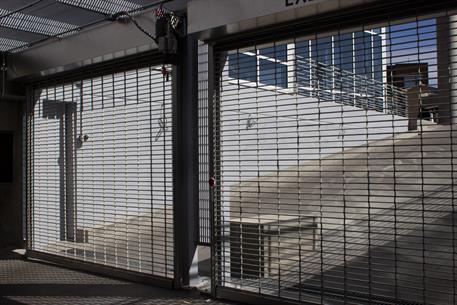

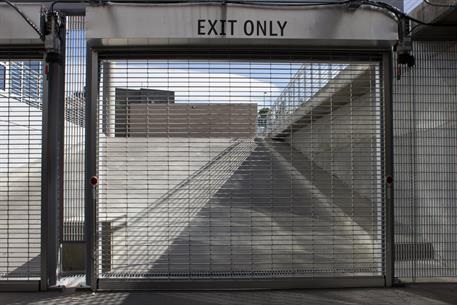

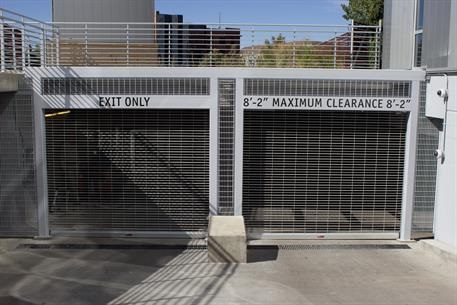

The Extreme^® 300 Series High Performance Grille is engineered for high-traffic openings. Parking garages, airports, and transportation hubs benefit from the grille's accelerated performance, operating up to 3X faster than other standard overhead coiling grilles. With 300,000 open and close cycles, and opening speeds of 24" per second and closing speeds at at 12" per second, it matches your productivity, smoothing traffic flow and reducing downtime.

Featuring a compact, direct-drive operator with a variable frequency drive, smooth starts and stops reducing wear and tear on the system. It accepts virtually all security activation systems and features a 2-year or 300,000-cycle warranty.

Looking for a higher cycle, but not higher speed? Check out TruCycle™ Security Grille.

Need A Dealer Need Design Help

Sizes

Our 300 High Performance Grilles come in the following standard height and width parameters:

If your maximum height is less than or equal to…	…your maximum width available is:
12’	30’
16’	28’

For openings that fall outside of the standard construction, please contact us

Standard Materials and Finishes

The 300 Series Grille open air design provides increased visibility and ventilation. Curtains are assembled with heavy duty 5/16” diameter aluminum alloy rods spaced at 2” on the center with aluminum tube spacers specifically placed to create two pattern options:

Brick Pattern
Straight Pattern

Curtains can come in the following finishes:

Mill
Clear anodized
Medium bronze anodized
Dark bronze anodized
Black duranodic

Extreme® Series Door Drive & Control System

This door features our first intelligent control panel - the APEX Pro SmartController™. It features:

Plug-and-play connections between the motor, control panel, and standard sensors
LCD screen that walks user through:
- Initial door commissioning
- Electrically set limits
- Status and error messages
- Many common door adjustments

This door also comes with a compact direct drive operator with no roller chains or sprockets and an internal inertia brake for safety.

Videos

Aesthetics

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Powder Coating Grilles

Powder coat finish in more than 180 colors is available on perimeter components such as the aluminum bottom bar, hoods, wall angles, tubes and fascia. This finish is not available on the grille curtain.

Learn More

Sloping Bottom Bar

CornellCookson's new low profile sloping bottom bar for the Extreme MicroCoil Grille and Extreme 300 Series High Performance Grille allows for a continuous uniform grille versus the traditional, bulkier pitch plates giving your opening a highly aesthetic, finished look.

Learn More

Performance Upgrades

Vibration Isolators

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by 14% on doors and grilles with Vibration Isolators installed compared to doors and grilles without the system.
Learn More

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Safety and Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Monitored Protection, Even at High Speeds

UL 325-2010 (NEMA 4X) compliant photo eye sensors allow for momentary contact operation – useful in parking garages and other high use openings. Interruption of the photo eye beam before the door fully closes causes the door to immediately halt downward travel and reverse direction to return to the fully open position.

SafetyGard Light Curtain Technology

The 6’ tall light curtain is installed within the guide and blends into the guide construction. If the grille is cycling and an object passes through the curtain beams the door will immediately halt downward travel and reverse direction to return to the open position.

Specification Sheets

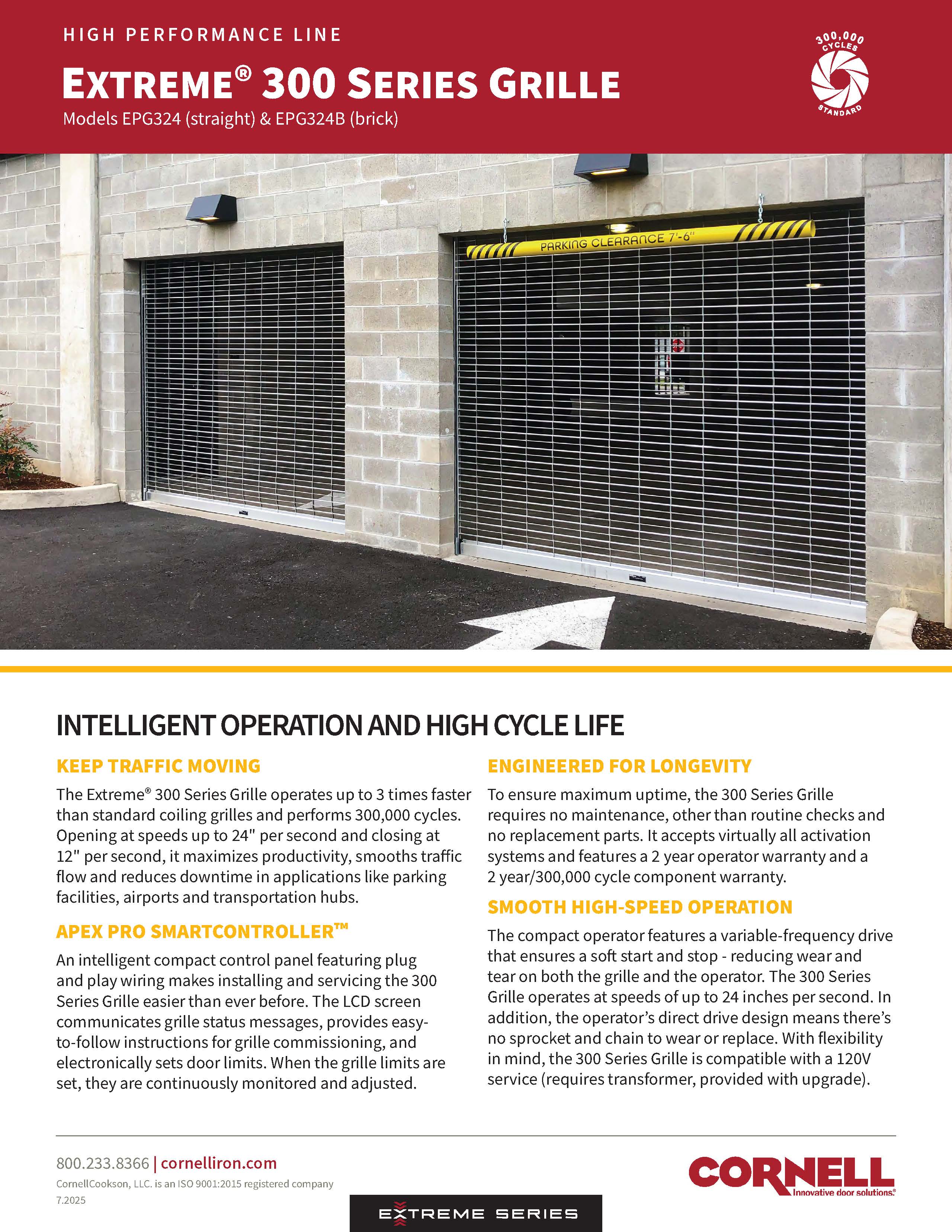

Extreme 300 Series High Performance Grille Specification

BIM Objects

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
High Speed/High Cycle Grille Drawing Generator
