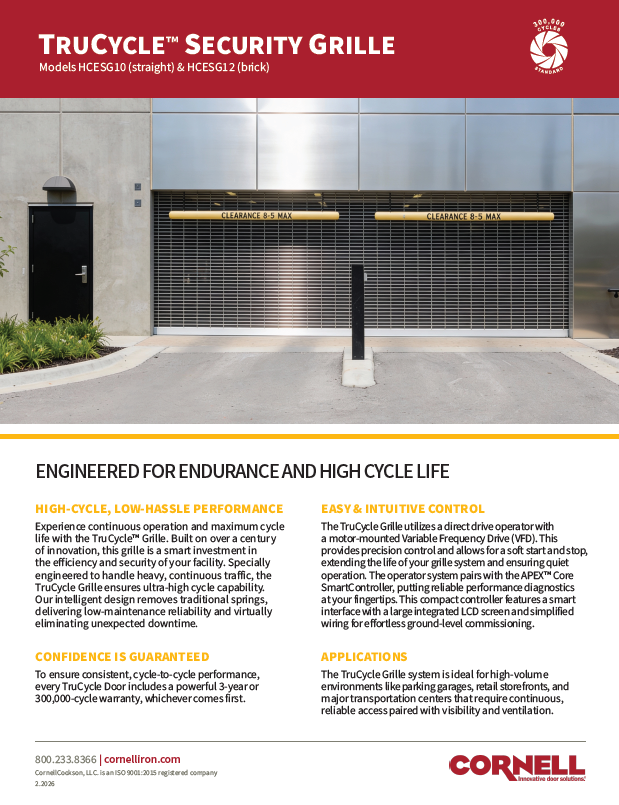

TruCycle^™ High-Cycle Security Grille

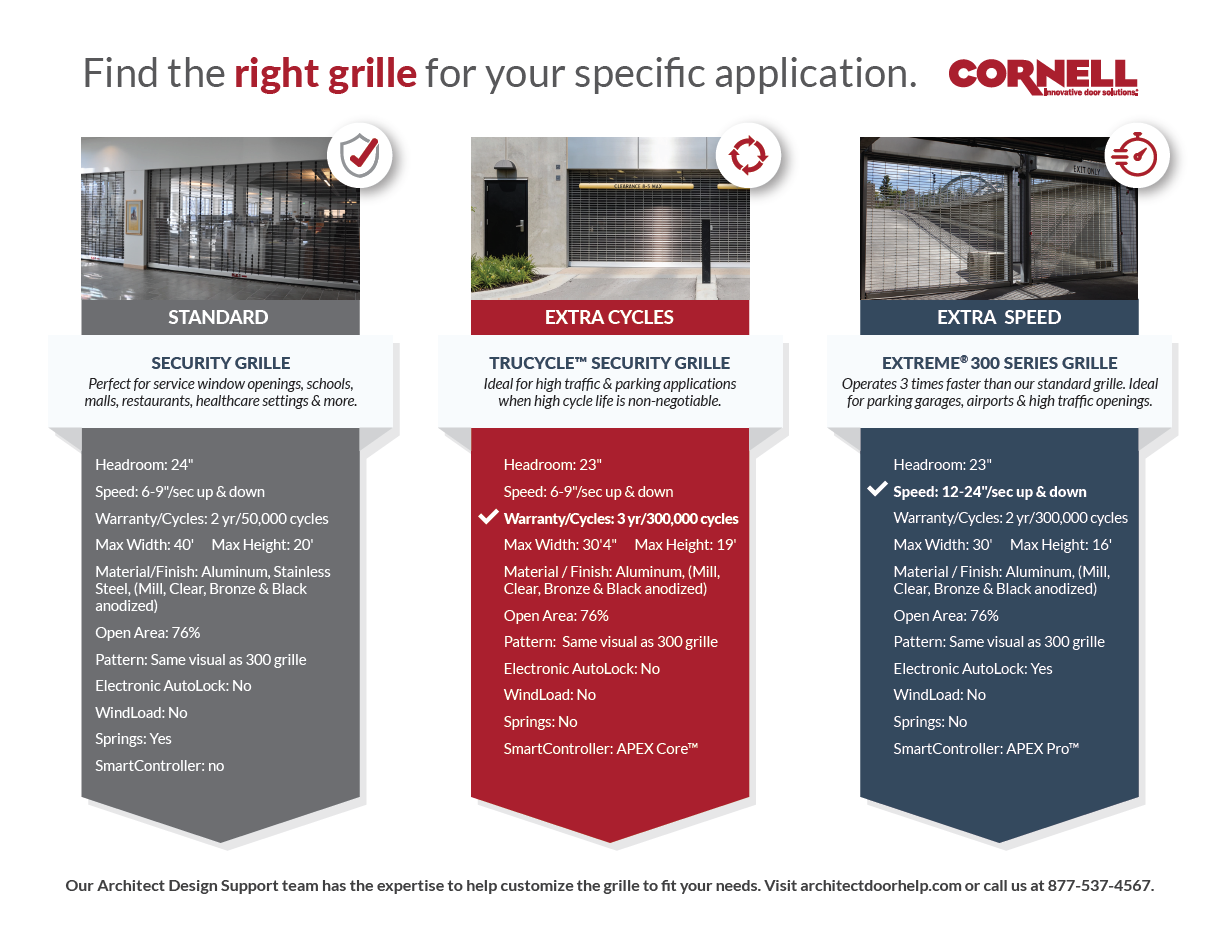

Balancing security, visibility, and airflow shouldn't mean sacrificing reliability. The TruCycle^™ Grille hits the sweet spot, delivering more efficiency than a standard grille and greater economy than a high-speed one. Our engineers achieved this by removing the most common point of failure in standard commercial security grilles – the springs. This springless grille delivers uninterrupted, low-maintenance performance, keeping your building secure and accessible, cycle after cycle.

The system's robust direct-drive operator and Variable Frequency Drive (VFD) operate your grille smoothly, protecting your system and significantly extending its lifespan. Paired with our smallest-ever the APEX Core Controller, diagnostics are easy to access, and ground-level commissioning is effortless.

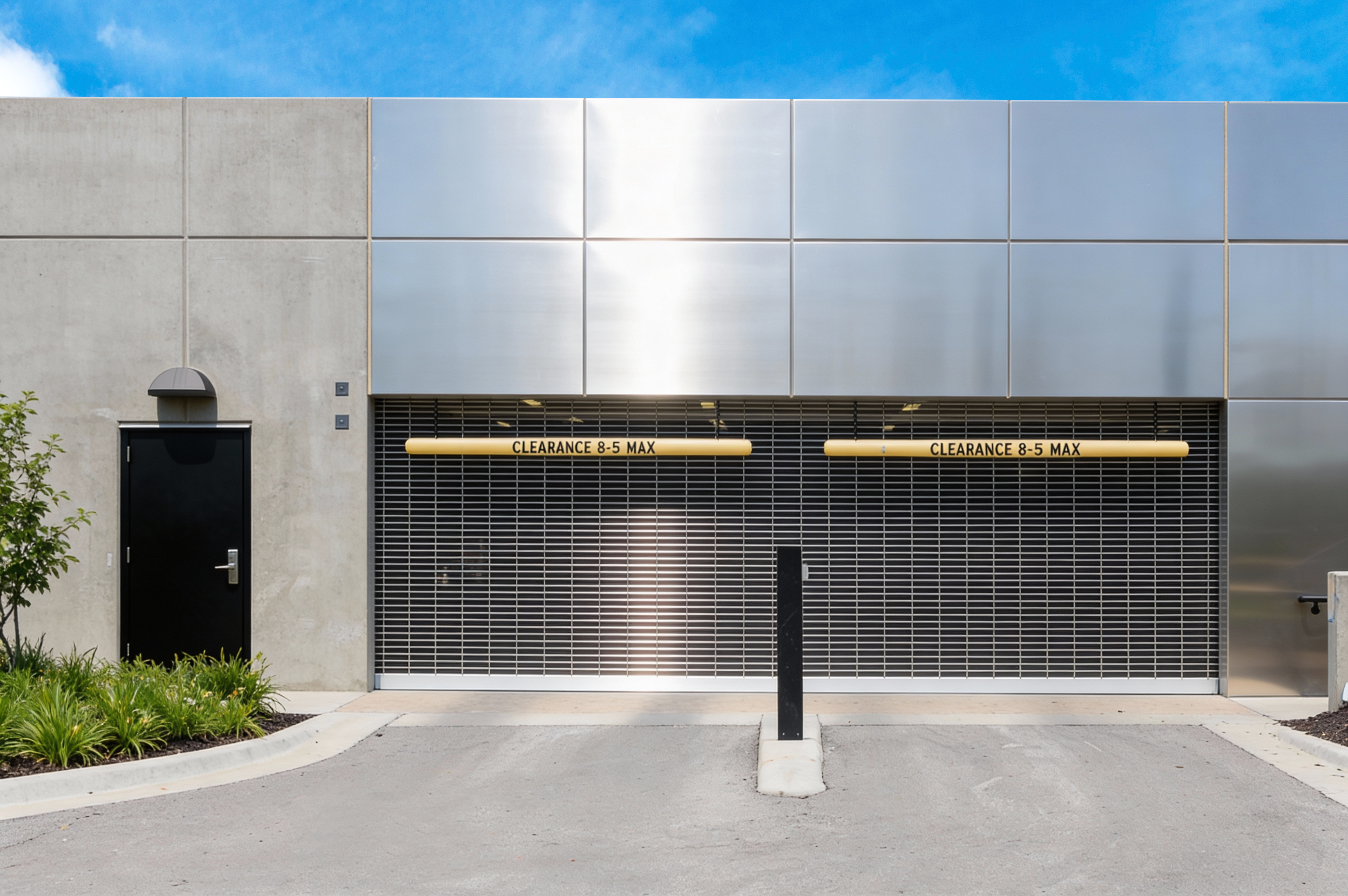

Proven in demanding applications where uptime is critical, the TruCycle Grille is engineered to excel as a dependable parking garage grille where traffic is nonstop and as a robust retail security grille for reliable daily operation. Available in both brick and straight curtain patterns, its performance is guaranteed with our industry-leading 3-year/300,000-cycle warranty.

Need A Dealer Need Design Help

Usage

These grille are designed to handle heavy, continuous traffic.

To ensure consistent, cycle-to-cycle performance, every TruCycle Grille includes a powerful 3-year or 300,000-cycle warranty, whichever comes first.

Standard Materials & Finishes

The TruCycle Grille open air design provides increased visibility and ventilation. Curtains are assembled with heavy duty 5/16” diameter aluminum alloy rods spaced at 2” on the center with aluminum tube spacers specifically placed to create two pattern options:

Brick Pattern
Straight Pattern

Curtains can come in the following finishes:

Mill
Clear anodized
Medium bronze anodized
Dark bronze anodized
Black duranodic

Operation

The TruCycle Grille utilizes a direct drive operator with a motor-mounted Variable Frequency Drive (VFD). This provides precision control and allows for a soft start and stop, extending the life of your grille system and ensuring quiet operation. The operator system pairs with the APEX Core SmartController®, putting reliable performance diagnostics at your fingertips.

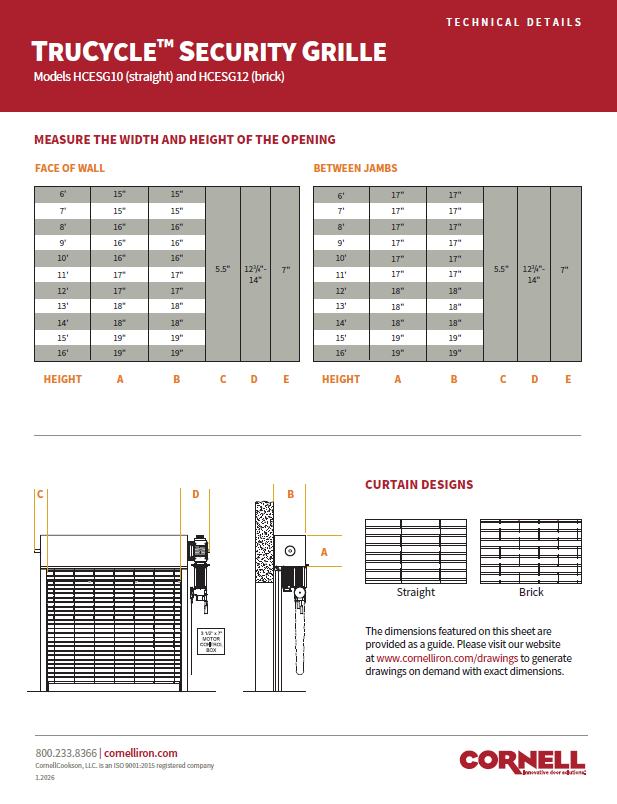

Sizes

Max Width: 30'4"
Max Height: 19'

For openings that fall outside of the standard construction, please contact us.

Videos

Safety & Protection

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Unique Features

APEX Core SmartController

This IP54 (NEMA 3 equivalent) controller features plug-and-play connections to operator and standard sensors to reduce installation time. Its compact panel features an LCD screen for guided commissioning, electronic limit setting, and status/error messaging. A NEMA 4 upgrade is available.

Monitored Protection

Standard UL 325-2010 compliant, NEMA 4X-rated photo eyes allow for momentary contact operation. Interruption of the beam immediately halts and reverses the grille to the fully open position. The photo eyes are shipped loose as standard.
