Thermiser Max^® Insulated Rolling Door

Name: Thermiser Max® Insulated Rolling Door
Brand: Cornell Iron

Insulated Doors

Model Number: ESD30

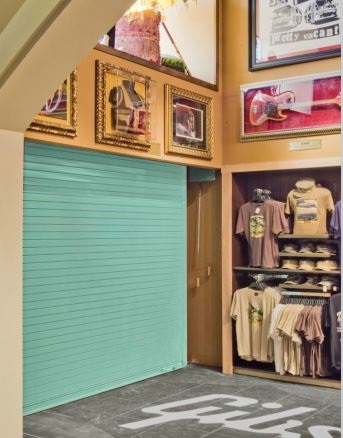

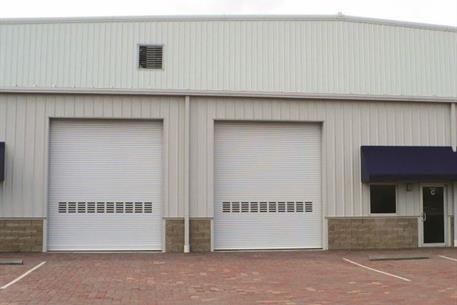

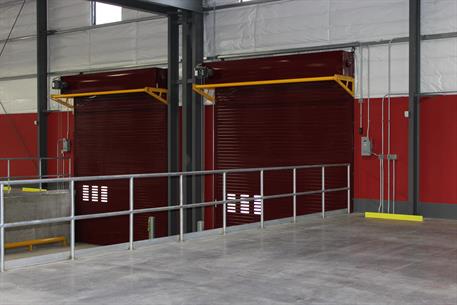

Insulated Roll-Up Door

The Thermiser Max® Door established the benchmark for thermal performance in the rolling industry. Enhanced efficiency is achieved through an integrated system of thermal breaks and superior insulation. An exclusive perimeter seal, thermally broken guides, and a fully insulated curtain work in concert to deliver an impressive 0.82 U-factor and decrease air infiltration by 94%*. This directly supports green building initiatives by contributing up to 38 points across five LEED certification credit categories.

Its certified performance exceeds the industry’s most stringent requirements. Thermiser Max® meets ASHRAE® 90.1, 2021 IECC®, and California’s Title 24 air infiltration standards with an independently tested value of less than 0.3 CFM/FT2*. It also achieves a superior Sound Transmission Class (STC) rating of up to 30 for the complete assembly (up to 32 available).

*When compared to standard, non-insulated rolling doors.

Need A Dealer Need Design Help

Usage

These doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.

If your requirements call for more than 20 cycles per day, high cycle construction is available.

Visit our line of High Performance Doors

Materials and Finishes

Configuration:
Double skin interlocking roll formed interior and exterior metal slats :

R-value of 8 as calculated using the ASHRAE Handbook of Fundamentals

Slats are filled with 7/8" thick closed cell pressure foamed in place urethane insulation:

Flame Spread Index of 0
Smoke Developed Index of 10 as tested per ASTM E84
CFC-free process with an Ozone Depletion Potential rating of 0
Meets foam plastic insulation requirements of the 2012 IBC®, section 2603

Slats available in:

Galvanized Steel

Exterior Slat Gauge 24 / Interior Slat Gauge 24 - Brown, Gray, Tan, White, Black
Exterior Slat Gauge 22 / Interior Slat Gauge 24 - Gray, Tan
Exterior Slat Gauge 22 / Interior Slat Gauge 22 - Gray, Tan
Exterior Slat Gauge 20 / Interior Slat Gauge 24 - Brown, Gray, Tan, Black
Exterior Slat Gauge 18 / Interior Slat Gauge 24 - Gray, Tan, White

Stainless Steel

Exterior Slat Gauge 22 / Interior Slat Gauge 22 - #4 finish
300 series in #4 finish
316 stainless steel in #4 finish

Aluminum

Exterior Slat Gauge 18 / Interior Slat Gauge 18 - Mill, Clear, Color Anodized Finish

Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.

Available Operators

Our doors can open by motor, chain, hand-crank, or push-up operation, depending on size, weight and/or frequency of operation.

Model MG – A medium duty operator for doors that will cycle less than 20 times per day

Model SG – A super duty, full logic operator for larger doors or doors that may periodically cycle more than 20 times per day

EverGard - features a battery backup system that will last a minimum of 48 hours after power loss. This allows users to operate the door in the same manner as when there is AC power for up to 10 cycles.

NEMA 7/9 - Multiple sensing device and intrinsically safe board

NEMA 4/12 & NEMA4X - Waterproof SGH operator, suitable for low pressure direct spray.

Learn more about our operators here.

Videos

Aesthetics

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

Chain Diverter for MGH Operators

This option moves the auxiliary chain out of the clear opening and to the side of the door – enabling free movement through the door and making a chain bag unnecessary.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

SpectraShield™ Powder Coating

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Trim Package

In applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.

Learn More

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Learn More

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

One-way vision windows allow occupants to only see out offering a perfect balance of natural light, enhanced security, and privacy.

Learn More

Finishes Colors & Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Performance Upgrades

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

High Cycle Springs

Heavy duty springs manufactured to withstand cycles of 100,000.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Vibration Isolators

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by 14% on doors and grilles with Vibration Isolators installed compared to doors and grilles without the system.
Learn More

Safety and Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Learn More

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

HDBB (Heavy Duty Bottom Bar)

The HDBB is 350% stronger than traditional bottom bars, preventing forklift damage to your Service or Insulated Door. The HDBB can pay for itself after the first impact and significantly reduce future maintenance costs.

Learn More

RapidResponse

RapidResponse doors are provided with 3' or 6' of extra curtain, an impactable bottom bar and removable lower guide sections. These features allow for faster repair of slat damage, reducing downtime and maximizing the lifetime value of your door.

Learn More

RapidResponse Options Page

Rolling Door Protector (RDP)

The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.

Learn More

Static Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Learn More

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

Superimposed Doors

Combine two different curtains on the same opening. Typically, an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, we can provide superimposed/double insulated curtain assemblies.

Learn More

Vibration Isolators

SmartSync Wireless Safety Edge

SmartSync™ Wireless Safety Edge & Wireless Remote Controller

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*
*Not compatible with NEMA 7/9 operators
Learn more.

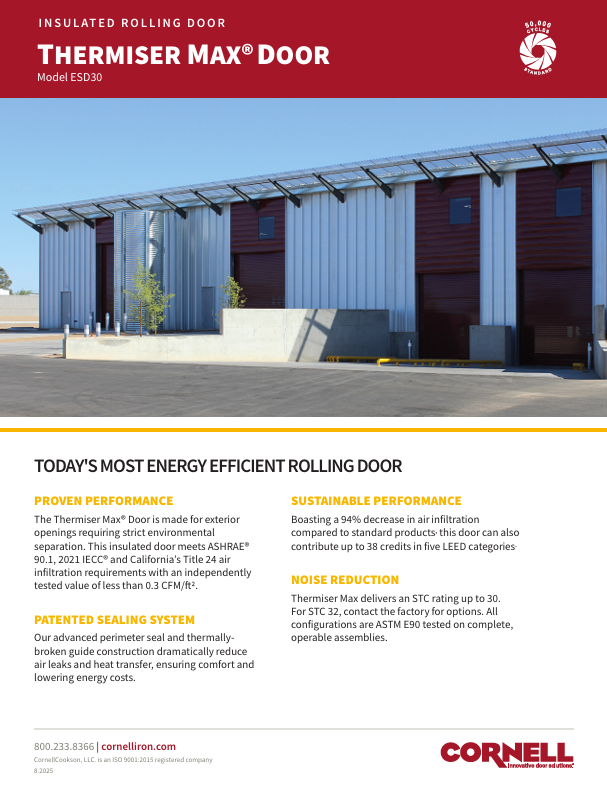

Specification Sheets

Thermiser Max Insulated Door Specification

BIM Objects

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
