Corrosion Resistant Service & Insulated Doors

Insulated Doors

Model Number: ESD10CR(Service) & ESD20CR(Insulated)

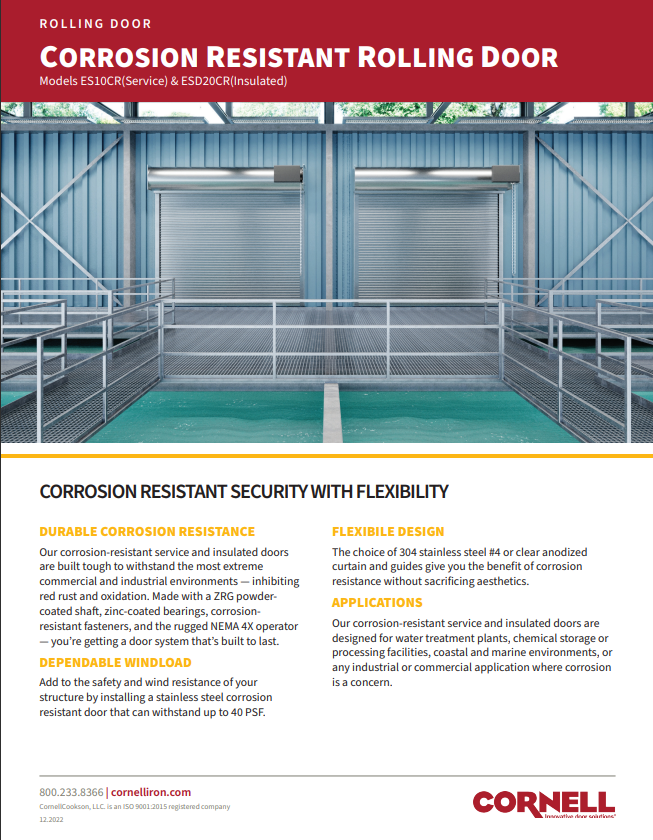

Overhead Rolling Doors for Corrosive Environments

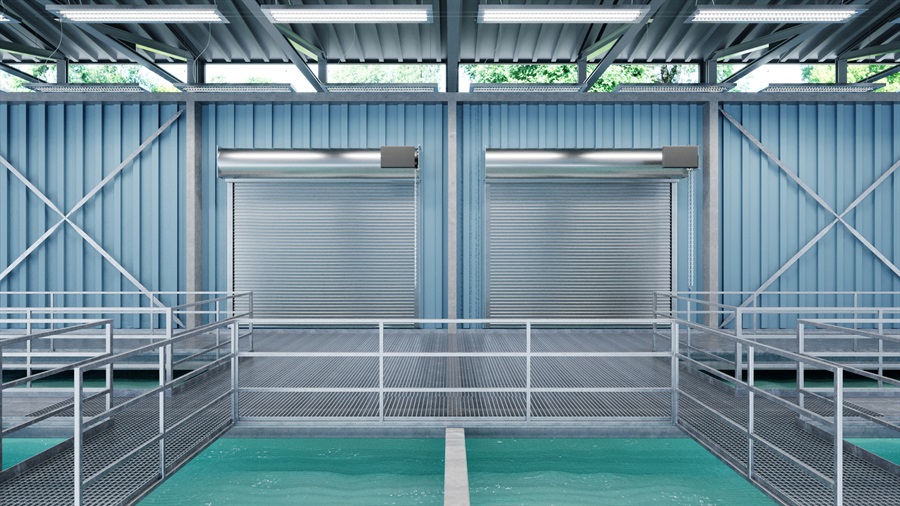

Our standard rolling and insulated doors have now been redesigned to meet the specific needs of Water Treatment Plants. These doors provide security as well as protection from weather at interior and exterior openings. The Corrosion Resistant Service and Insulated Doors are ideal in environments where corrosion is a concern.

These corrosion resistant doors come standard with a NEMA 4X operator which is designed for continuous use. Other standard features include corrosion resistant fasteners, stainless steel head plate, zinc coated bearing, ZRG Powder Coated Shaft, and stamped stainless steel endlock/windlock.

The Corrosion Resistant Service and Insulated Doors are available in 304SS or Clear Anodized curtain and guides.

Our stainless steel Corrosion Resistant door is configured to withstand a static windload of 40PSF.



Standard Materials & Finishes

Available Operators

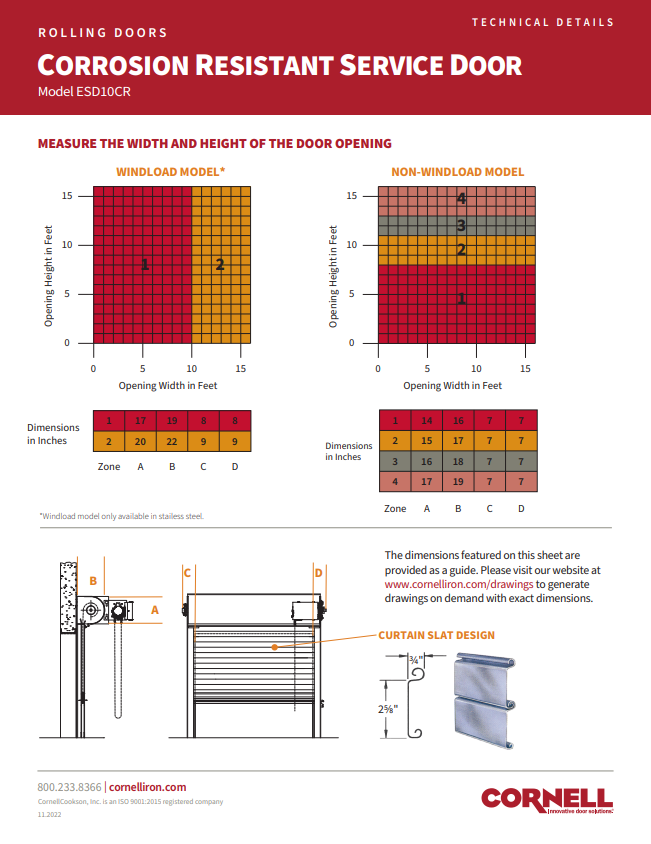

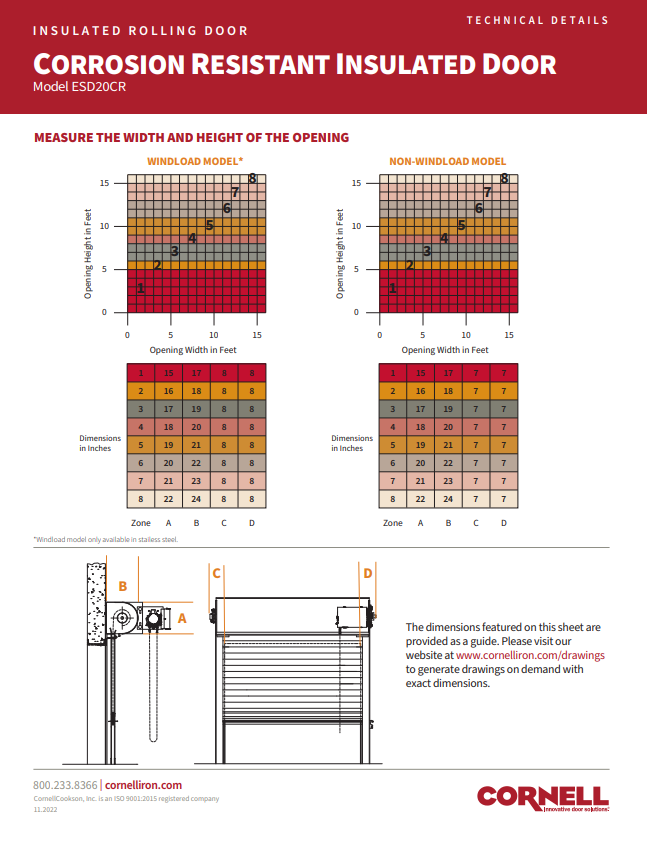

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Corrosion Resistant Service & Insulated Doors Drawing Generator

Codes & Listings
  • ISO 9001:2008
  • Buy America Compliance
  • LEED® Compliance
See Codes and Listings page for detailed information.
