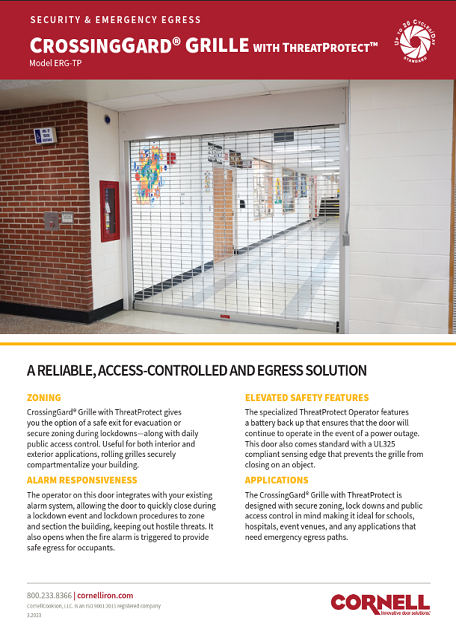

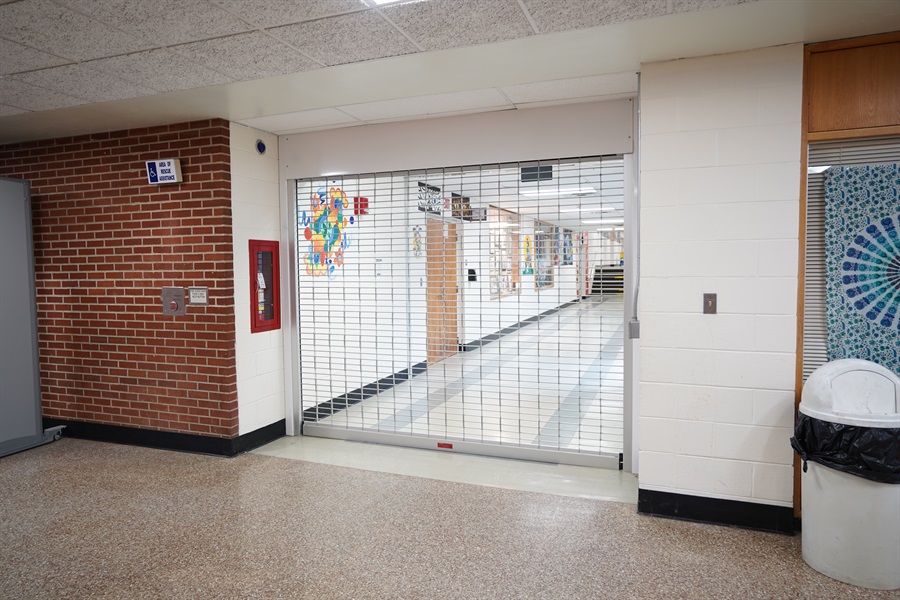

CrossingGard® Grille with ThreatProtect™Security Grilles
Model Number: ERG-TP
An Elevated Emergency Response Security Grille
The CrossingGard® Grille with ThreatProtect™ is designed for emergencies and public access control. Using intuitive technology, the operator on this grille integrates directly with your existing alarm system. It promptly closes during a lockdown situation to zone the building and opens during other emergencies, such as fire, to clear a path for exiting.
Our security grille gives you the benefits of visibility and air circulation in a variety of finishes and patterns to complement your space.
The CrossingGard Grille with ThreatProtect comes standard with a UL-325-compliant safety edge sensor that detects obstructions when the grille is closing. This safety feature helps prevent the grille from closing on objects. The operator also comes standard with a reliable battery backup that keeps the grille operating during a power outage. A key override gives you full control over who has access to your security grille system.
Standard construction up to 30’ wide, 20’ high
For openings that fall outside of the standard construction, please contact us
Standard Materials and Finishes
The CrossingGard Grille with ThreatProtect comes standard with a steel counter-balance shaft and aluminum mill finish guides.
Curtains are available in the following models:
- Visionaire Model – 5/16” solid aluminum rods at 2” on center with either vertical chains of eyeleted aluminum spaced at 9” apart or heavy-duty aluminum links staggered by tube spacers.
- 5015 Model – 3/16” thick aluminum links with 5/16” solid aluminum rods spaced 11/2” apart and ½” diameter composite tube spacers on every rod.
The bottom bar comes standard heavy-duty extruded aluminum in mill finish.
The specialized ThreatProtect Operator features a battery backup that ensures the door will continue to operate in the event of a power outage.
This grille also comes standard with a UL325 compliant sensing edge that prevents the grille from closing on an object.
Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.
Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.
Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection
Galvanized steel with exclusive GalvaNex polyester enamel finish in grey or SpectraShield Powder Coating in more than 180 colors; aluminum in mill, clear and color anodized finish; or 300 series stainless steel in #4 finish
Materials & Finishes
- Aluminum in clear and color anodized finish
- Stainless steel 300 series in #4 finish
- SpectraShield Powder Coating in more than 180 colors (not available on curtains)
LED Light Kit
The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.
Magic SwitchA touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

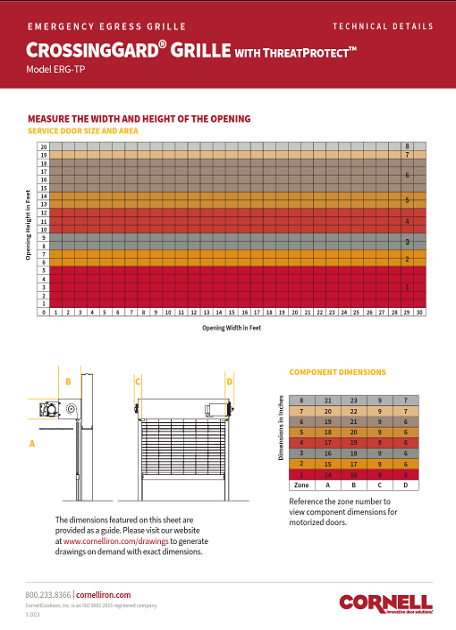

Technical Data Sheets
Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
CrossingGard Grille with Threat Protect Drawing Generator
