Fabric Smoke Door

Model Number: ERF20

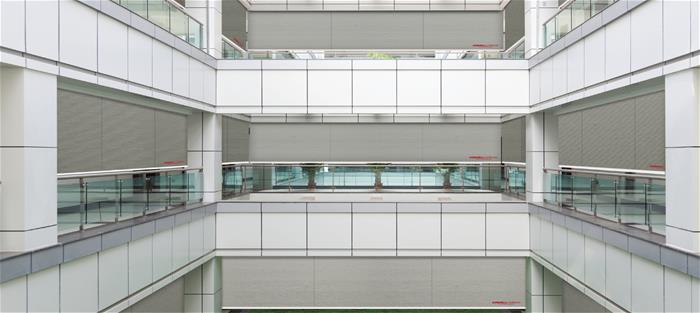

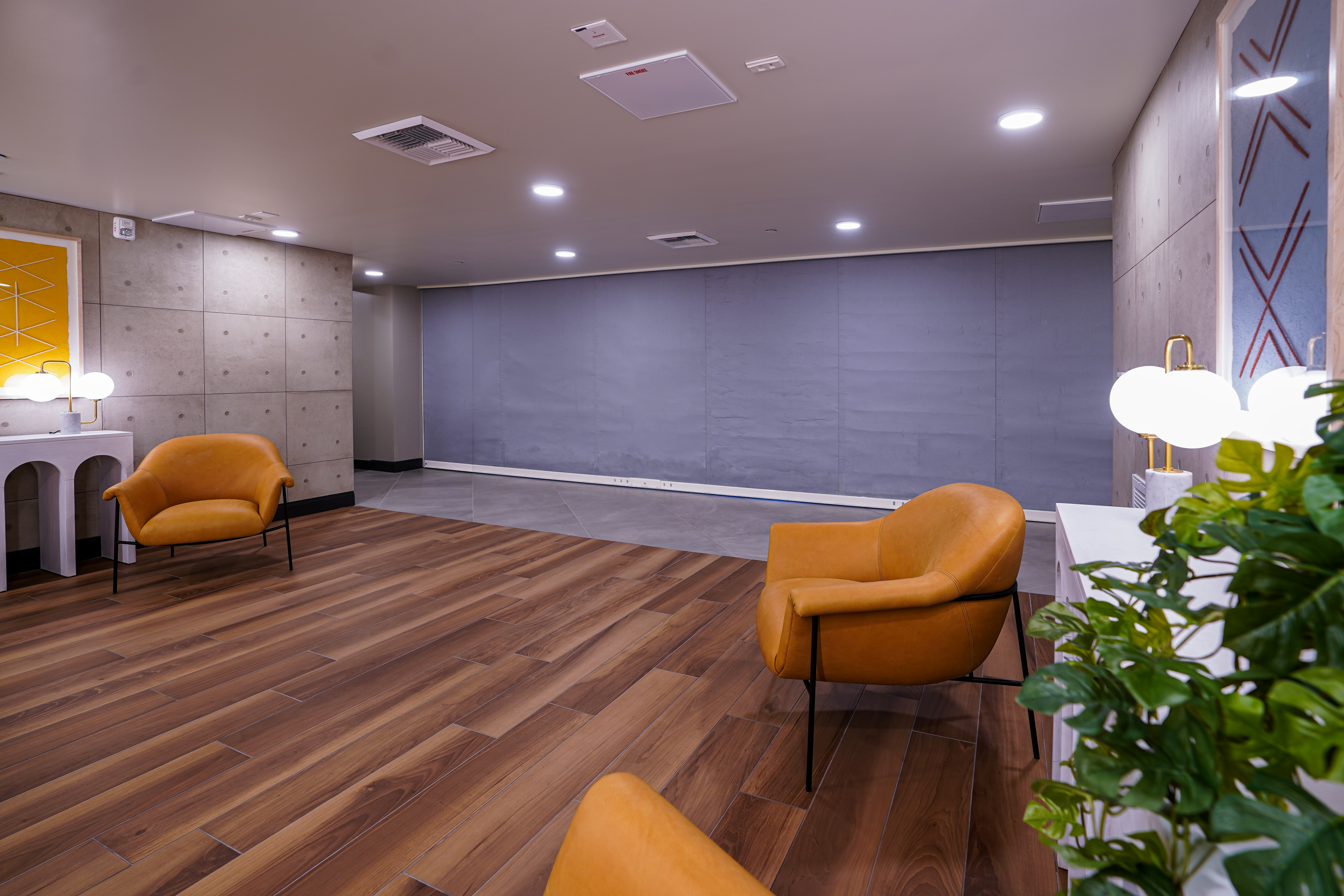

The SmokeShield®️ Fabric Smoke and Fire innovation offers a new way to compartmentalize open areas, creating a smoke and fire barrier. Using our patented GuideLock™️ technology, a seal is formed for the curtain within the guide channels—stopping smoke and fire in its tracks. The reliable seal of the closure also reduces the need for expensive smoke extraction systems.

SmokeShield Fabric Smoke & Fire allows the guides to easily be hidden by the surrounding wood, masonry, sheetrock or other fascia materials, freeing designers’ minds to experiment with layout possibilities. If the guides or the bottom bar are exposed, they can also be finished to match, complement, or contrast with the surrounding designs by applying a custom powder coat.

With minimal headroom, backroom, and side room requirements, this fire-rated closure will be a sure fit for almost any application.

Technical Detail Information:

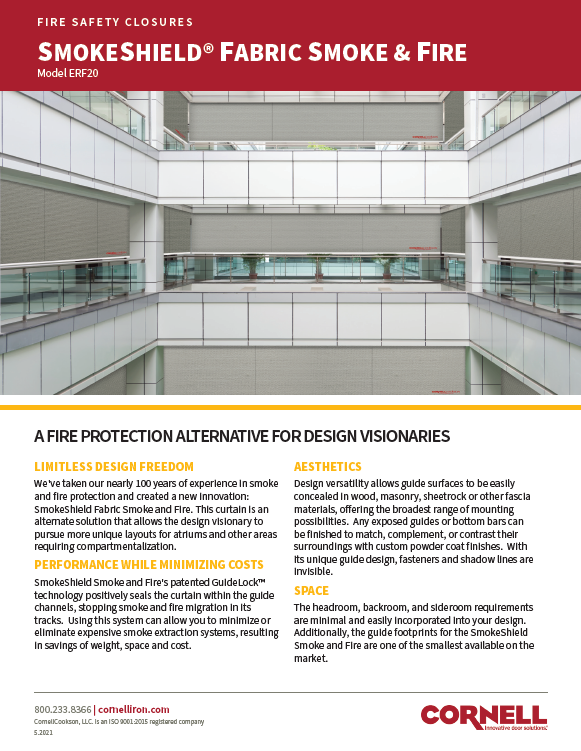

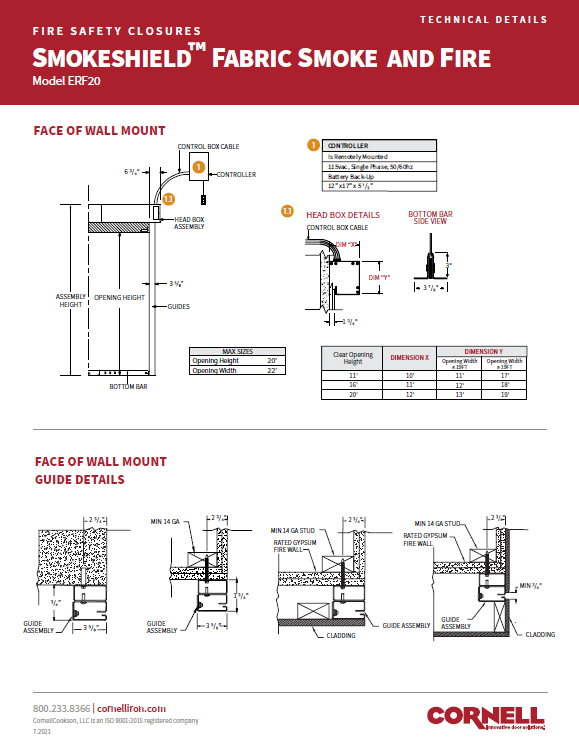

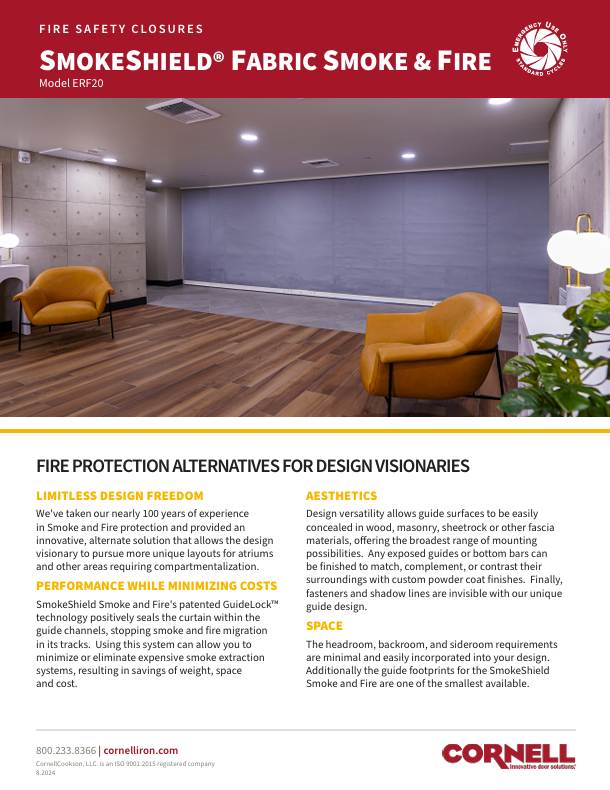

Fabric Smoke & Fire Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Sizes

Max Opening Height: 20'

Max Opening Width: 30'

Usage

This product is intended for emergency use only. The on board battery back-up is capable of cycling the system in the event of a power loss.

Operation

SmokeShield Smoke and Fire deploys upon notification by the fire alarm control panel or local smoke detectors and is reopened with the wall-mounted switch or set to auto-open.

Wire Directly

Wire Directly - SmokeShield Smoke & Fire Fabric

This option allows the SmokeShield Smoke & Fire Fabric enclosure to be wired directly into an emergency back-up power source.

Finishes

Finishes - SmokeShield Smoke & Fire Fabric

Custom powder coat available.

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
SmokeShield Fabric Smoke and Fire Drawing Generator
