Electronic AutoLock for High Performance GrillesHigh Performance
High Performance Automated Locking

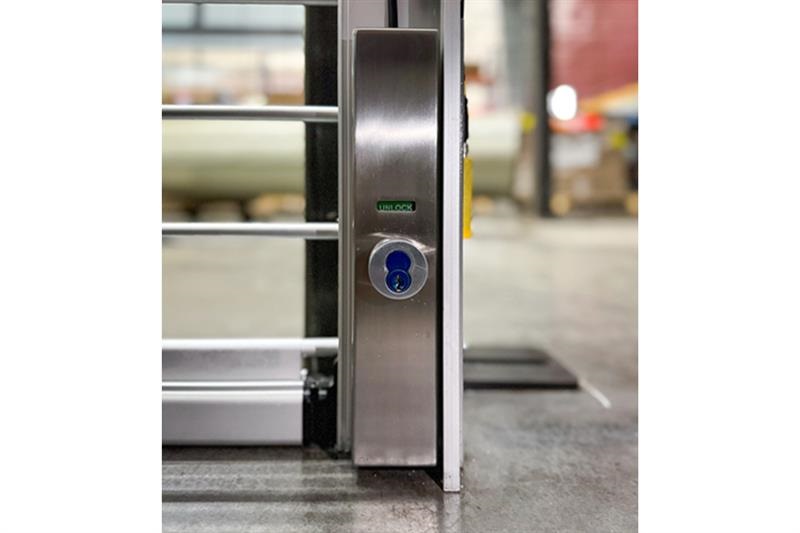

The Patent Pending Electronic AutoLock is available as an option on the MicroCoil Grille and the Extreme 300 Series Grille – it can also be retrofit to upgrade an existing grille in the field. The electronic locks are mounted to the guides and automatically engage the cylinder lock to provide additional lift resist security without compromising aesthetics, headroom or performance.
The Electronic AutoLock comes in standard or best cylinder tapering locking options – both are compact with less than a 1” projection past the guide.
In the event of a power outage, the locks will stay locked when the grille is in the closed position – but can be overridden with a key.
The Electronic AutoLock increases the overall security and strength of the Extreme MicroCoil Grille and 300 Series Grille by increasing lift resistance. Our high performance grilles in combination with the AutoLock system were tested for lift resistance with two assailants. The locks were able to withstand up to 1200 pounds of force on grilles with Aluminum guides and up to 940 pounds of force on Stainless Steel guides without the bottom bar lifting over the lock.
Electronic AutoLock Options Sheet
Standard Materials & Finishes
Designed with a durable stainless steel cover and housing with a solenoid plate within the housing.
To keep the aesthetic appeal, all options are compact, with less than 1 inch of projection past the guide.
The Electronic AutoLocks are available as an option on the MicroCoil Grille and the Extreme 300 Series Grille. It can also be retrofit to upgrade an existing grille in the field.
The Patent Pending Electronic Autolock is available in standard and best cylinder tapered.
