Why Wind Load a Grille?

In Part I of our wind load series, we covered the basics of what wind loading is, how it’s done, and why it’s necessary. If you missed the first installment, you can visit it here.

In Part II, we’ll be talking about wind load for grilles, something many do not think about due to a common misconception: that air passes through grilles without issue. Surprisingly, this is not always the case.

When thinking about wind and grilles, maybe you’re picturing a piece of swiss cheese in all its hole-y glory: the wind comes in, goes through the holes, and is done, without damage or any other considerations needed. This metaphor couldn’t be more wrong.

Instead, wind and grilles are more of a melty mozzarella situation: grilles catch things and don’t want to let go. In the case of the cheese, pepperoni or errant pieces of basil may get caught up. For the grille, air itself can be an issue if the grille isn’t wind loaded. Wind gusts can build in any area and negatively affect security grilles.

Specifying Wind Load for Your Grille

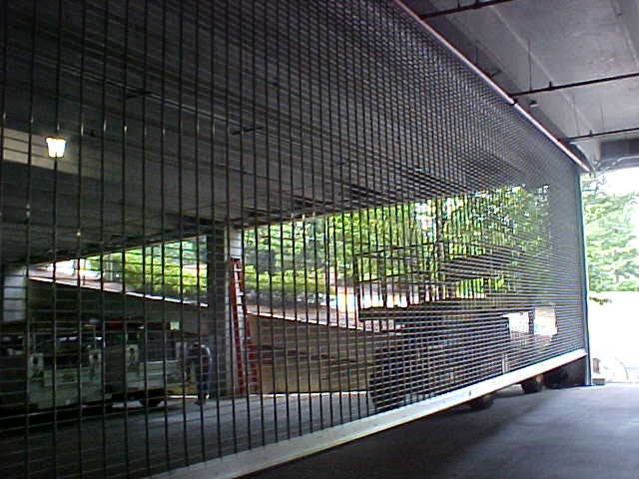

That’s why your grille of choice should include wind load in the spec. When a gust of wind blows through your location, it may not only take the leaves with it; wind gusts themselves can damage security grilles. As wind pressure increases and blows around and through the grille, it can create so much force that the grille is moved out of the guides. Wind pressure doesn’t simply pass through a grille. Instead, it builds, picking up the grille and ballooning out with it, making the possibility of damage very real. Wind can also cause grilles to get hung up within the guides, stuck in the open or closed position, or trapped halfway through an opening or closing cycle. Grilles can even blow out of the guides completely, rendering them useless and leaving the opening vulnerable. The risk here isn’t only in applications that experience heavy hurricane winds; it also applies to everyday gusts and occasional winds.

Debris whisked into a security grille by wind can also have a negative effect – it can cause pressure to build within the grille quickly, creating more risk of it popping out of the guides or opening entirely.

To prevent this, include the correct wind load calculation in your grille specification. You can calculate the right psf (pounds per square foot) of wind load needed for your grille by taking in all the factors that contribute to it (outlined in Part I). In some cases, your wind load calculations may need to be engineer-certified, depending on the project and state where the project is located.

Location Matters, Too

Wind load requirements in Pennsylvania may differ immensely from those in Florida or Texas, Oklahoma, and others along Tornado Alley. States that are more prone to intense weather events will need grilles with higher wind load capabilities. However, no matter where you are, every building in the U.S. has building codes with wind load requirements that must be met for safety.

The geographical location of the building can affect wind load just as the location of the opening. Grilles in corner openings or edges of a building need more wind load protection, as “the areas around the edges or corners of buildings are usually subjected to the most severe loading. As the mass of air becomes static in the center of our surface, the onrushing air passes out and around the building mass, attaining maximum velocity as it rounds the corner of the building,” according to this article on wind behavior.

The same is true the higher up in a building you go. Wind load requirements for grilles on the first floor as compared to the third will differ because of the additional pressure as it moves up and around the building.

Don’t Forget About Static and Operable Wind Load

Even though we mentioned this in Part I, it bears repeating: understanding whether you should specify static or operable wind load for your grille is crucial. Static wind load specifies the maximum wind load at which a door is able to remain safely in place while closed. Operable wind load specifies the maximum wind load at which a particular door is able to safely operate.

If you’re in a medical, emergency services, or law enforcement category, having a grille with operable wind load is essential. If your building doesn’t need grilles to cycle during an extreme weather event, you’re good to stick with static wind load when specifying.

What To Do if You Need a Grille with Operable Wind Load

Thankfully, the days of struggling to find a grille that can operate in less-than-ideal weather and wind conditions are over. Manufacturers are refining and reinventing products to make buildings safer than ever before, including grilles that have operable wind load.

For example, our MicroCoil^® Grille is a high performance, compact security grille that checks all the boxes:

• Nearly 50% less headroom required than typical security grilles
• Engineered to handle at least 500k cycles at up to 24” per second
• Patented nested link system that minimizes noise and vibrations
• Can be manufactured to withstand a static wind load up to 40 psf (if wind load is not specified, grille will be manufactured to withstand 20 psf ultimate wind load)
• Can be manufactured to withstand an operational wind load of up to 20 psf

View Our MicroCoil® Grille

Key Takeaways

• Security grilles have wind load requirements, much like security doors.
• Everyday gusts can damage grilles, pop them out of their guides, or remove them completely.
• Static wind load applies to a door or grille in the closed position. Operable wind load applies to how much wind a door or grille can withstand while in operation (cycling open and closed).
• Cornell’s MicroCoil® Grille meets building codes for wind load: it can withstand a static wind load up to 40 psf and also has operable wind load options.

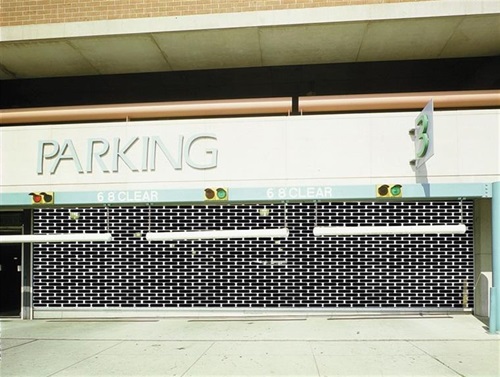

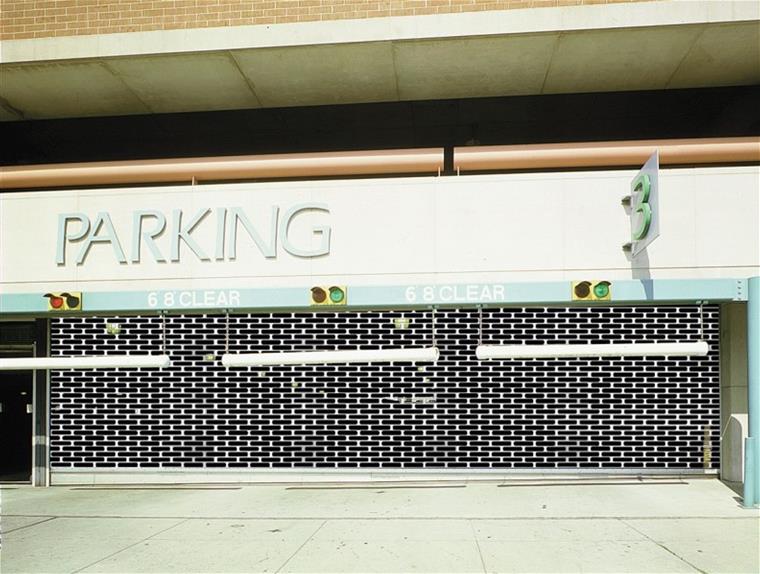

• Having a security grille such as Cornell’s MicroCoil® Grille in parking garages where wind load increases at building corners and as you move up to higher floors is paramount for safety and security.

To talk to our Architectural Design Team about your wind loaded grille options, contact us at 833.958.1273 or fill out a contact form.
