Wind-Master^® Service and Insulated Rolling Doors

Maximum Protection

Model Number: ESD10W, ESD20W

Maintain full operational control, even in severe weather. The Wind-Master^® Door is engineered to operate under a sustained 20 PSF wind load, ensuring your operations never stop. Thoughtful engineering delivers precision control, with a specialized roller wind lock system that keeps your curtain in place and glides smoothly without binding, while its innovative springless design leverages the door's full weight for effortless, reliable cycling every time.

The Wind-Master Door is available in both standard service and insulated models, offering versatile design with top-of-the-line security and durability. For applications demanding enhanced climate control or reduced sound transmission, our insulated model provides an ideal thermal barrier. Wind-Master is the definitive choice for reliability in demanding environments with exposed, high-velocity wind zones.

Need A Dealer Need Design Help

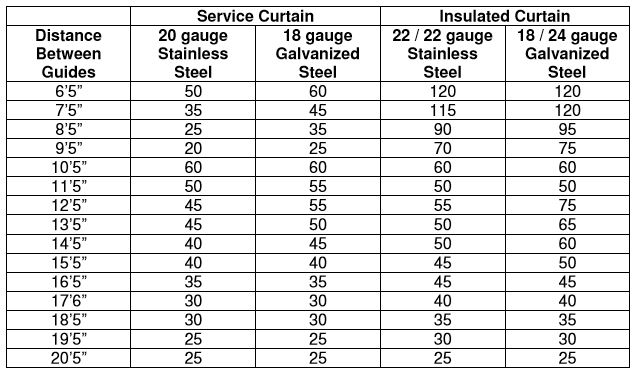

Static Wind Load

Sizes

The minimum size of a Wind-Master Service or Insulated door is 6'4" wide x 6'4" high.

The maximum size of a Wind-Master door is:

Service Door

20'5" wide x 20' high (Steel)
20'5" wide x 16' high (Stainless Steel)

Insulated Door

20'5" wide x 20'4" high (Steel)
20'5" wide x 20'4" high (Stainless Steel)

Operator

The Wind-Master Operational Wind Load Door must be motor operated.

It features a super duty SG operator with full logic. It can be used on larger doors or doors which may periodically cycle more than 20 times per day

Aesthetics

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Learn More

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

One-way vision windows allow occupants to only see out offering a perfect balance of natural light, enhanced security, and privacy.

Learn More

Finishes Colors & Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Safety and Protection

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Learn More

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Performance Upgrades

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Learn more.

SmartSync Wireless Safety Edge

SmartSync™ Wireless Safety Edge & Wireless Remote Controller

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*
*Not compatible with NEMA 7/9 operators
Learn more.

Specification Sheets

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
