Exam Room Counter Door

Counter Door

Model Number: ESC15

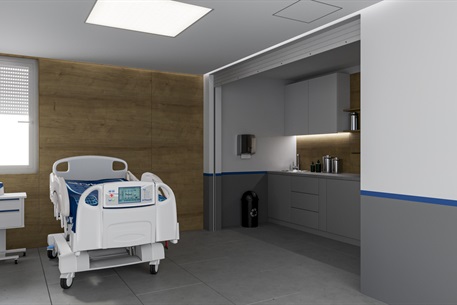

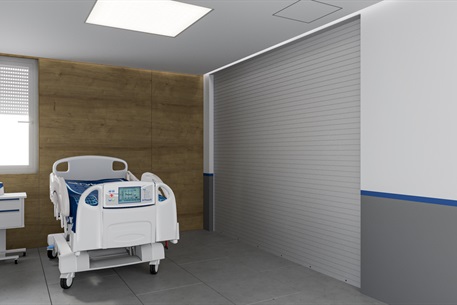

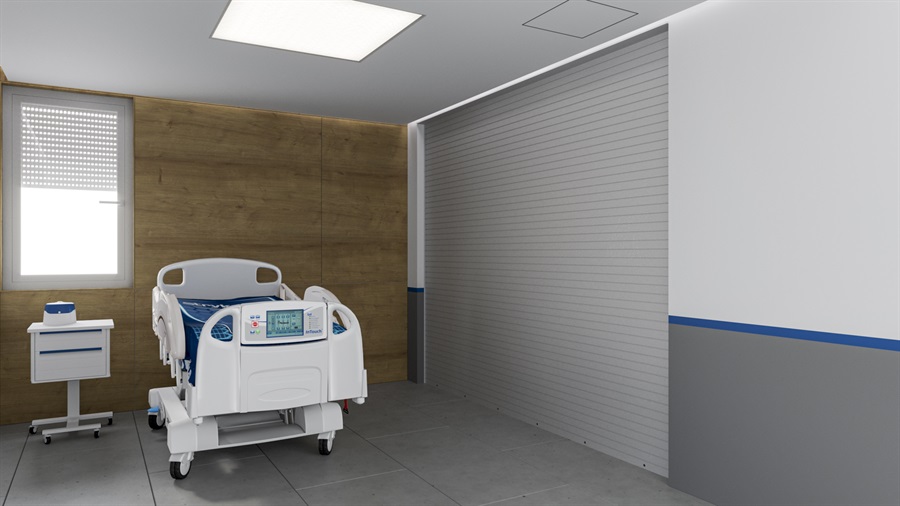

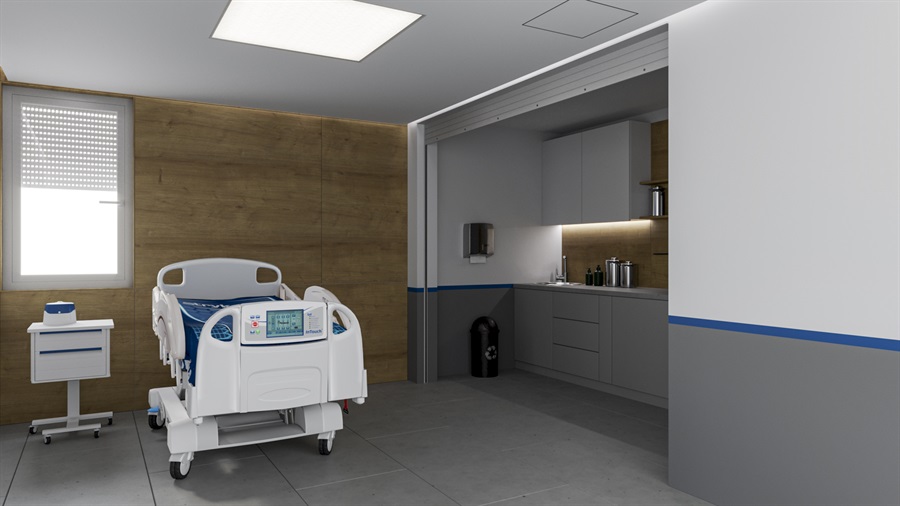

The Exam Room Counter Door transforms a standard room into a secure, multi-purpose space. It allows healthcare facilities to safely treat both medical and behavioral health patients in the same room back-to-back, which saves resources and improves the operational efficiency of the space.

Our robust design starts with a standard steel curtain for optimal strength. In the event of deliberate collision, impact-resistant guides and end locks ensure the curtain remains securely in place. Engineered with patient security as the top priority, the door’s design eliminates potential hazards. The fascia side motor is above the ceiling and the coil sits above the medical cabinet. Together with concealed fasteners and a flat bottom bar, these features create a smooth, anti-ligature surface facing the patient. This design meets the stringent ASHRAE/Facility Guidelines Institute (FGI) recommendations for all exam room finishes to be impact, tamper, and ligature resistant.

Learn more about this premiere healthcare solution.

Need A Dealer Need Design Help

Usage

Our Exam Room Counter Doors are constructed for daily use.

Standard Materials & Finishes

Counter-Balance Shaft – Made of steel, supports curtain and contains torsion springs for assisting operation

Brackets – Steel with powder coating to match curtain

Tubes & Guides – Two piece steel guides attached to tubes that are recessed into drywall

Curtain - Interlocking roll-formed flat-faced slats made of Galvanized steel with GalvaNex™ polyester enamel finish in gray, tan, white or black.

End Locks - Riveted to the end of each slat, they are designed to ensure that the curtain is held within the guides in the event of impact.

Bottom Bar - Single angle flat bottom bar in steel with powder coating to match curtain creates a smooth transition.

Operations & Structural Requirements

Motor operation is required
Product is mounted to tubes that are recessed into the drywall along with the coil, eliminating ligature points.

Sensing Edge

Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Learn More

Aesthetics

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

Materials & Finishes

16 gauge extruded aluminum in clear, color anodized and powder coat.
Stainless Steel - 300 series in #4 finish.
SpectraShield powder coating in more than 180 colors.
For a more durable finish, consider upgrading to our Galvanex™ Ultra™ or SpectraShieldR Ultra™ powder coat finish.

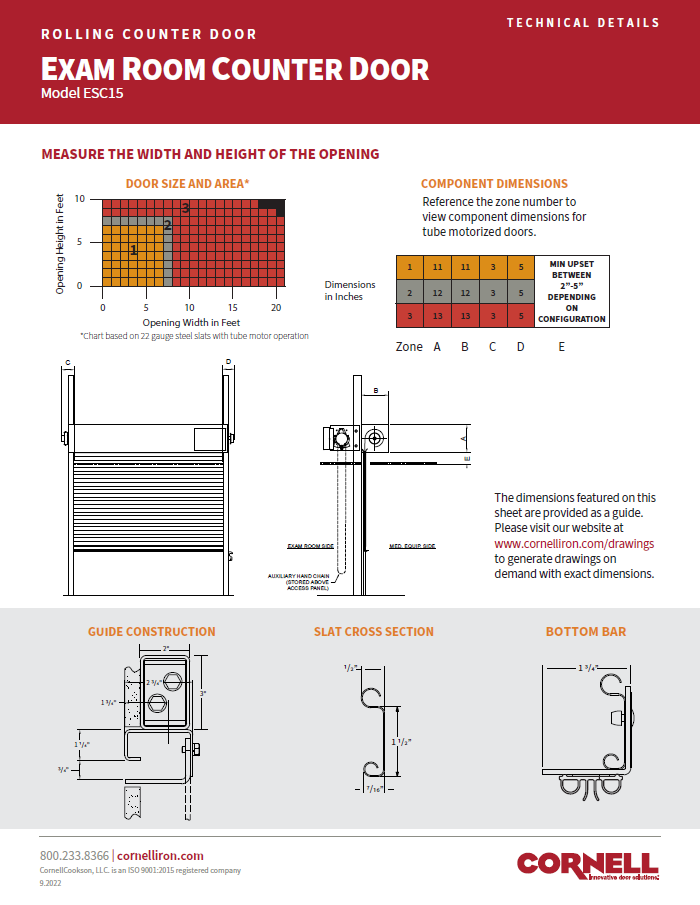

Technical Data Sheets

Exam Room Counter Door

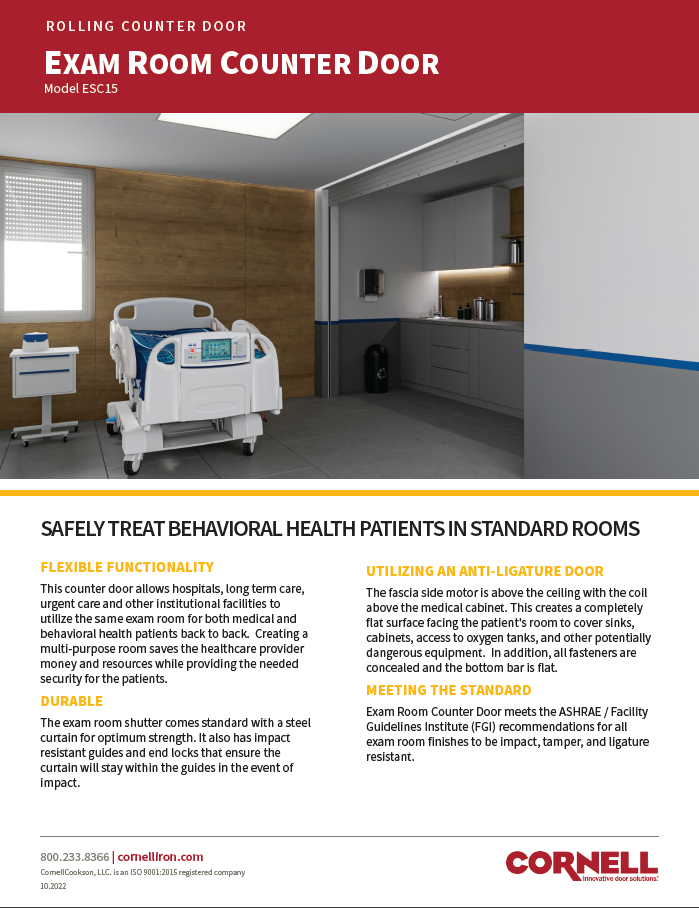

Specification Sheets

Exam Room Counter Door

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Exam Room Counter Door Drawing Generator

Codes & Listings

ISO 9001:2008
LEED® Compliance

See Codes and Listings page for detailed information.

Generate a CAD Drawing

Exam Room Counter Door
