EntryDefender® Door | Defender SeriesDefender Series
Model Number: PED0101 (05,15, 60)
High Security Door
The award winning EntryDefender® Door is designed to protect government buildings, pharmaceutical and cannabis dispensaries, manufacturing facilities, and other sensitive structures from attack for 5, 15 and 60 minutes in accordance with the U.S. Department of State Standard for forced entry SD-STD-01.01, Revision G (Amended). It is the only rolling door in the United States that meets that criteria and still allows designers and architects the flexibility to design large openings without compromising security.
It may look like a standard rolling door from the outside, but the robust steel curtain features interlocking slats that compress when in the closed position, creating a smooth surface that reduces potential pry points. As the attack continues, the interlocking slats engage further to prevent separation and make the door even more durable. It also features a reinforced bottom bar and discreet locking system that eliminates the ability to lift the door.
The EntryDefender Door is so impressive, it won a Platinum Award for Best Critical Infastructure Protection Solution at the 2019 Astors Awards given by the American Security Today Magazine.
The EntryDefender Door meets the U.S. Department of State Standard for forced entry SD-STD-01.01, Revision G (Amended) for a 5, 15 and 60 minute attack.
The government standard for forced entry (CODE) was designed for attacks that escalate – not planned attacks. That’s why the testing required for this code requires six men between the ages of 18 and 24 that weigh more than 160 but less than 250 pounds to try and pass a rigid rectangular shape measuring 12” x 12” x 8” or a rigid 12” x 12” cylinder through the door using hand tools such as battering rams, axes, crowbars, and the like.

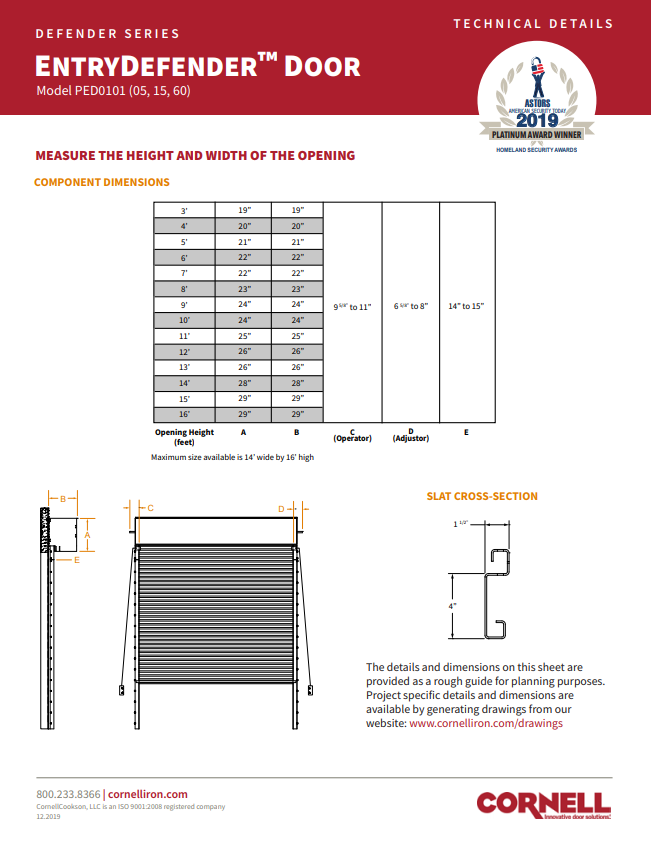

The maximum size available will vary slightly based on the wall construction.
If the wall construction is steel, the maximum size is 13’ 11 1/4" wide by 16’ high.
If the wall construction is concrete, the maximum size is 13' 8 3/4" wide by 16' high.
The EntryDefender Door is designed to operate to 20,000 cycles (lifetime) as standard, but can also be customized to handle additional cycles if desired.
Standard Materials & Finishes
The standard materials and finishes for EntryDefender are:
Curtain – 12 gauge 4” flat steel slat with SpectraShield® powder coat in gray.
Guides – Steel with powder coating to match the curtain.Bottom Bar – 12 gauge 4” face steel bottom bar with powder coat to match the curtain.
The EntryDefender Door features the SG motor operator as standard. It is UL-325 listed with a chain and sprocket drive. It also includes an interlock to prevent operation while locks are engaged.
Static Wind Load
The EntryDefender door is designed for a static wind load of up to 125 psf.
Check Out How We've Helped These Clients With Custom Closure Solutions:
"We are very pleased with the performance of the Cornell doors. Throughout the area, doors are blown out everywhere and the building we just moved from was destroyed. Here, our $2.3 million of inventory was saved. Being satisfied with the Cornelldoors is an understatement!"
ROGER WEIR, OPERATIONS MANAGER AT LEWIS BEAR COMPANY
"CornellCookson had installed a rolling door for us in our old building. We used it all the time and it’s held up really well over the years. Calling them in again made perfect sense. We are thrilled with how this door looks. The level of detail that’s been captured so clearly on this large door is incredible. It’s exceeded our expectations by far and will definitely do its job as a focal point in our new building."
MARK WORMAN, OWNER OF GRAVEYARD CARZ
"The existing grilles we had installed prior could not stand up to the cycle usage, and they needed a lot of maintenance. Cornell's Extreme Performance 324 grille is the right product, far superior to the other grilles we had in this opening before. We are really happy with the performance and will definitely purchase this product going forward, when the next opportunity arises."
MARK ARGABRIGHT, FACILITY MANAGER AT YOHN PROPERTY MANAGEMENT
"Not only was functionality a major concern, but we also needed a custom closure solution that worked with the overall exterior aesthetic of the building which is rooted in neighborhood context. We collaborated with CornellCookson to develop a solution that is both functional and architecturally sensitive."
EUGENE FLOTTERON, CETRARUDDY ARCHITECTURE
"The SteelWeave Metal Mesh Grille was the perfect solution to meet all of our needs. It complimented the design of the bar and lobby while adding some elegance. We could not be happier with the look and function of our CornellCookson SteelWeave Metal Mesh Grille and custom sliding panel."
DONALD FOX, FOX THEATERS
Smoother Installation and easy maintenance: Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.
Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.
Stronger weather protection: Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection
AtmoShield™ Powder CoatingTextured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.
SpectraShield™ Powder Coat Finish
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.Learn More
LED Light Kit
The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.
SmartSync™ Wireless Safety Edge & Wireless Remote Controller
The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.
The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*
*Not compatible with NEMA 7/9 operators
