Fire Rated Counter Shutter

Counter Fire Door

Model Number: ERC10 and ERC20

Rolling Counter Fire Shutters

Fire rated counter shutters are used to prevent the migration if one should happen to break out. This is achieved by using the shutter to compartmentalize a space to keep the smoke and flames contained to where they originated. This closure is ideal for above counter applications but can also be used for openings that reach the floor.

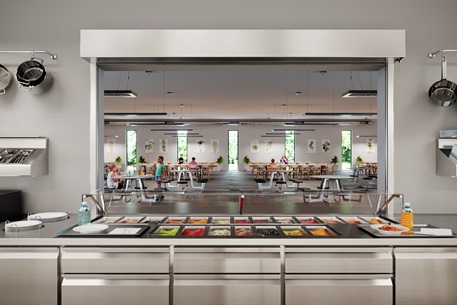

UL labeled for up to 3 hours, the fire rated counter shutter is ideal for lunch rooms and concession stands. It is custom built to exact opening specifications using compact guides, slats, brackets and hoods for a smooth profile.

Integral Frame and Sill

We also offer our fire rated counter shutter with an integral frame and sill. This package is designed to reduce coil, bracket and header size to fit tight clearances while offering a sleek look.

The integral frame and sill units are also easy to install by slipping in to an existing wall.

SmokeShield for Fire Shutters

Where there is fire, there is always smoke. That is why we offer SmokeShield, an enhanced smoke and draft control system that confirms to UL1784.This optional feature will assure that the smoke is compartmentalized along with the fire.

Technical Detail Information:
Counter Fire Door Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Sizes

The maximum limits listed in our UL procedure are for counter fire doors up to 16’-0” wide, 10’-0” high with a 120 sq ft maximum. If the counter shutter is over 12’ wide the limit is 7’6” high.
For openings that fall outside of the standard construction, please contact us.

Standard Materials and Finishes

Counter Fire Shutter curtains are available in:

22 gauge galvanized steel
- Exclusive GalvaNex™ finish in gray, tan or white
22 gauge 304 series stainless steel
- #4 finish

Click here for additional material and finishes options and information.

Mounting Options

Rolling Counter Fire Shutters are for use in rated masonry or drywall construction (wood or metal studs).

Fire Specific Options

SmokeShield® Seal Package

Often required by local building codes, our smoke seal adds smoke and draft control.

Learn More

Annunciators

Optional safety devices on provide a visual and/or audible advanced warning when the door is about to close .

Learn More

Battery Back Up Devices

Available for motor, chain and crank operators, these devices prevent fire doors from closing from a power failure.

Learn More

Firefly & Firefly BB Release Device

Optional device that ties in to a building alarm system and closes a FireGard fire door upon alarm activation, rather than by melting its fusible link.

Learn More

Aesthetics

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

SpectraShield™ Powder Coating

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Finishes Colors & Options

Finishes Colors and Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Performance Upgrades

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Testing Stations

Safely and conveniently test and reset the functionality of the fire door at floor level. May be flush or recess mounted.

Learn More

Safety and Protection

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

Unique Design Solutions

Rated Integral Frame and Sill

Our Rolling Counter Fire Shutters with Integral Frame and Sill (counter top) are designed with reduced coil, bracket and header size (8” minimum) to fit tight clearances.

Learn More

Countertops

Countertops are available for a complete counter shutter closure solution, and can be UL rated.

Learn More

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
Learn more.

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Counter Fire Door Drawing Generator
Counter Fire Door with Integral Frame Drawing Generator

Codes & Listings

ISO 9001:2008
Buy America Compliance
LEED® Compliance

See Codes and Listings page for detailed information.
