VisionGlide Side Folding Grille

Side Folding Grilles

Model Number: ESG30

Side Folding Gates

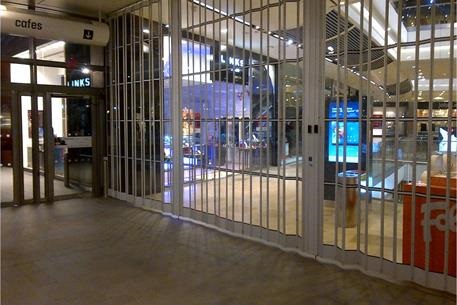

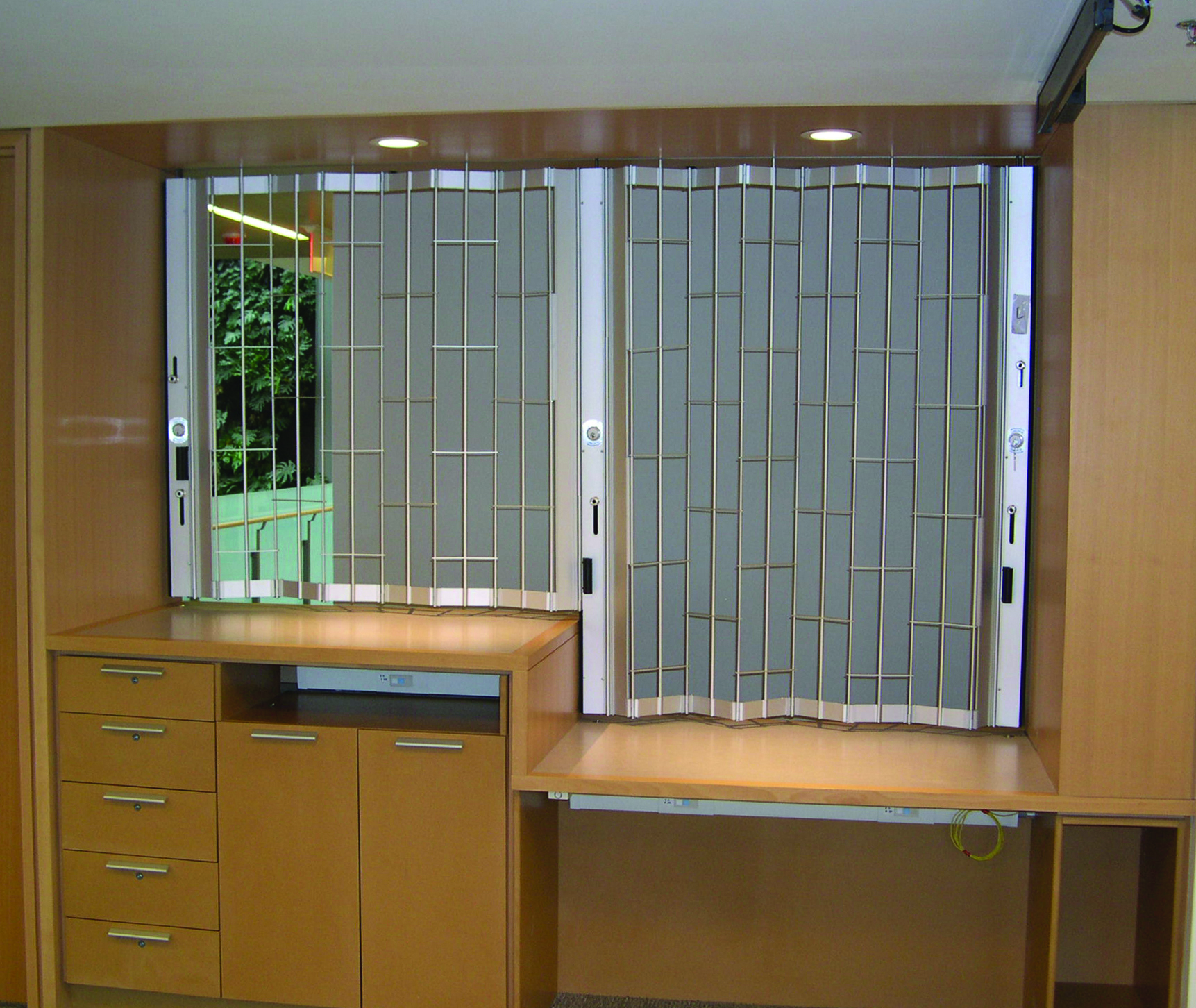

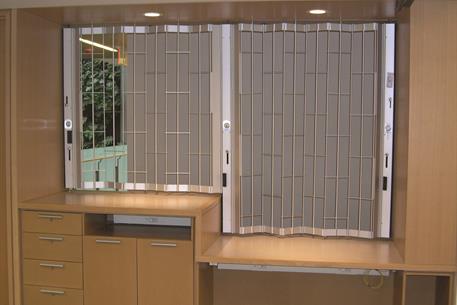

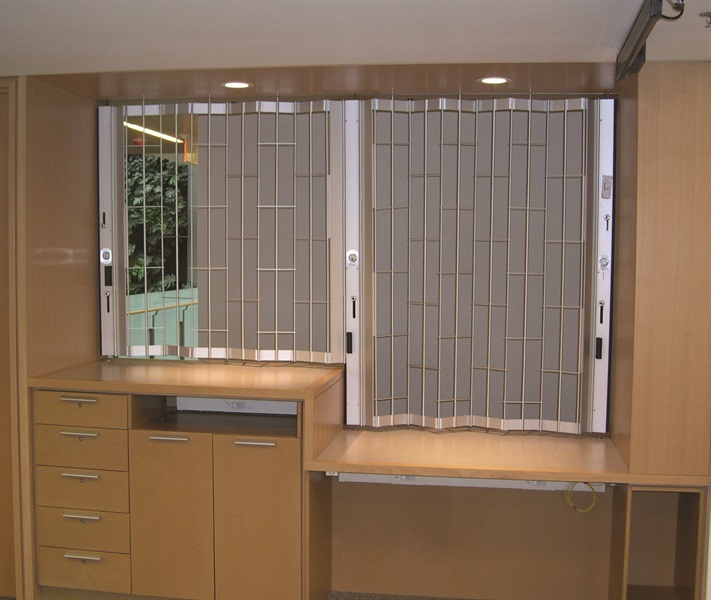

If you have an opening that needs a lightweight closure with not-so-lightweight security, the VisionGlide™ Side Folding Grille may be the solution you’re after.  While VisionGlide is an effective traffic barrier, its light hang weight of 0.8 lbs per square foot means that you can install it on limited supporting structures.  This product is excellent for floor to ceiling dividers in public spaces such as offices, hospitals and lobbies.

Side folding grilles require less headroom clearance than rolling grilles. The VisionGlide™ curtain is formed with a series of vertical 5/16" diameter aluminum rods on 3.5" centers. Horizontal chains formed of eyeletted aluminum links are spaced at 12" apart. Vertical hanger rods mounted to rollers that slide in the overhead track support the curtain.

Standard Features:

  • Clear anodized rods, links and post material
  • PVC tube spacers, polycarbonate hinged top and bottom panels to match
  • Fully anodized version optional
  • 12" link spacing standard
  • 9", 6" or 3" spacing optional
  • Hook bolt locking with cylinders both sides standard, other locking optional
  • Fully anodized version optional


Track Information



Drawing Generator
Codes & Listings
  • ISO 9001:2008
  • Buy America Compliance
  • LEED® Compliance
See Codes and Listings page for detailed information.
