VertiStack™ Clear | Compact Stacking Sectional DoorSectional Doors
Model Number: VS904L

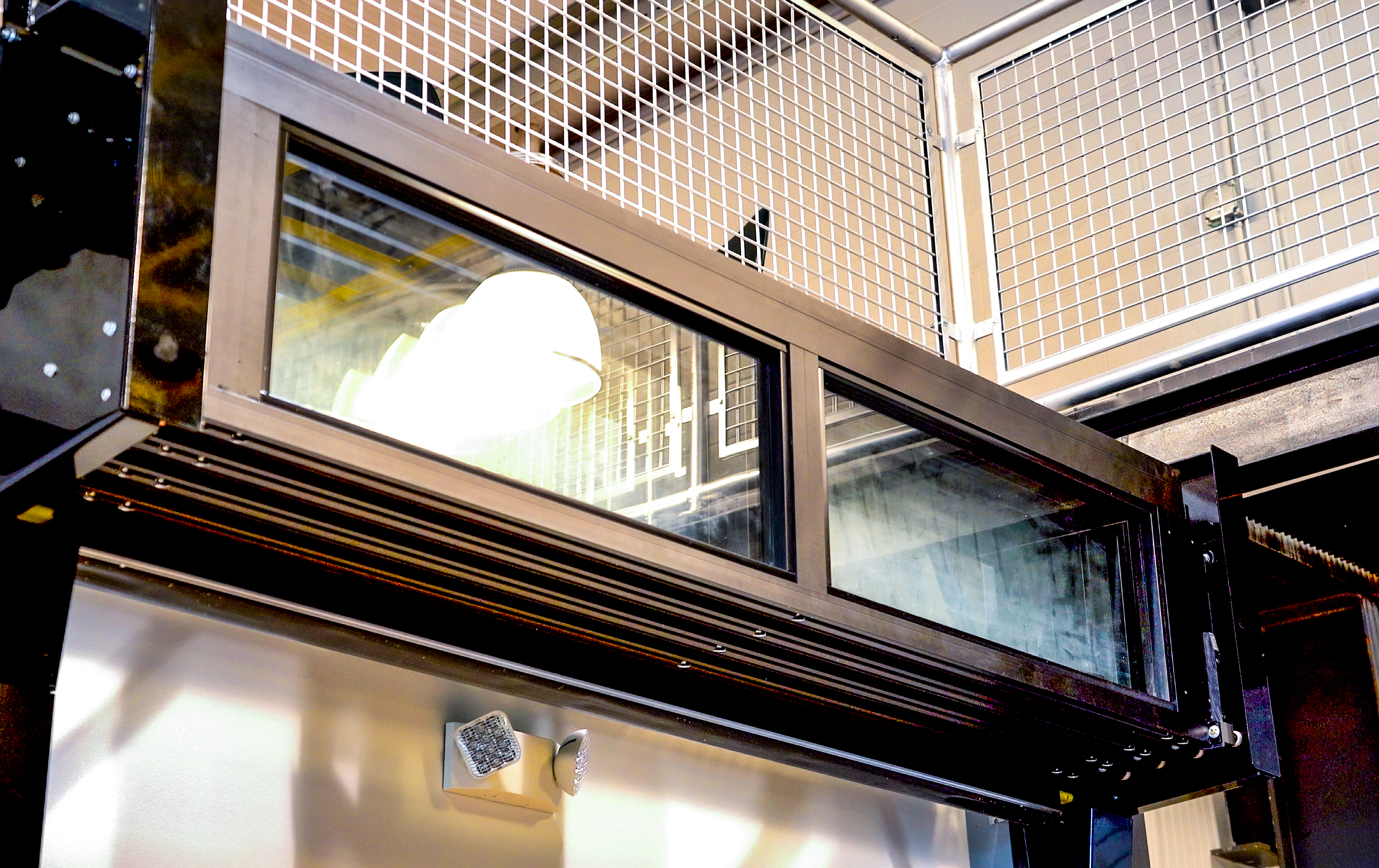

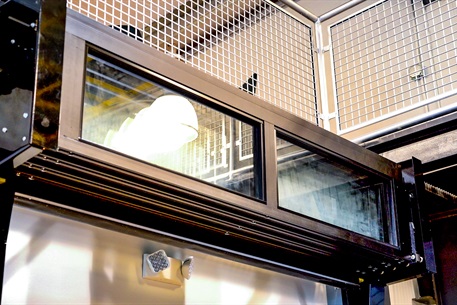

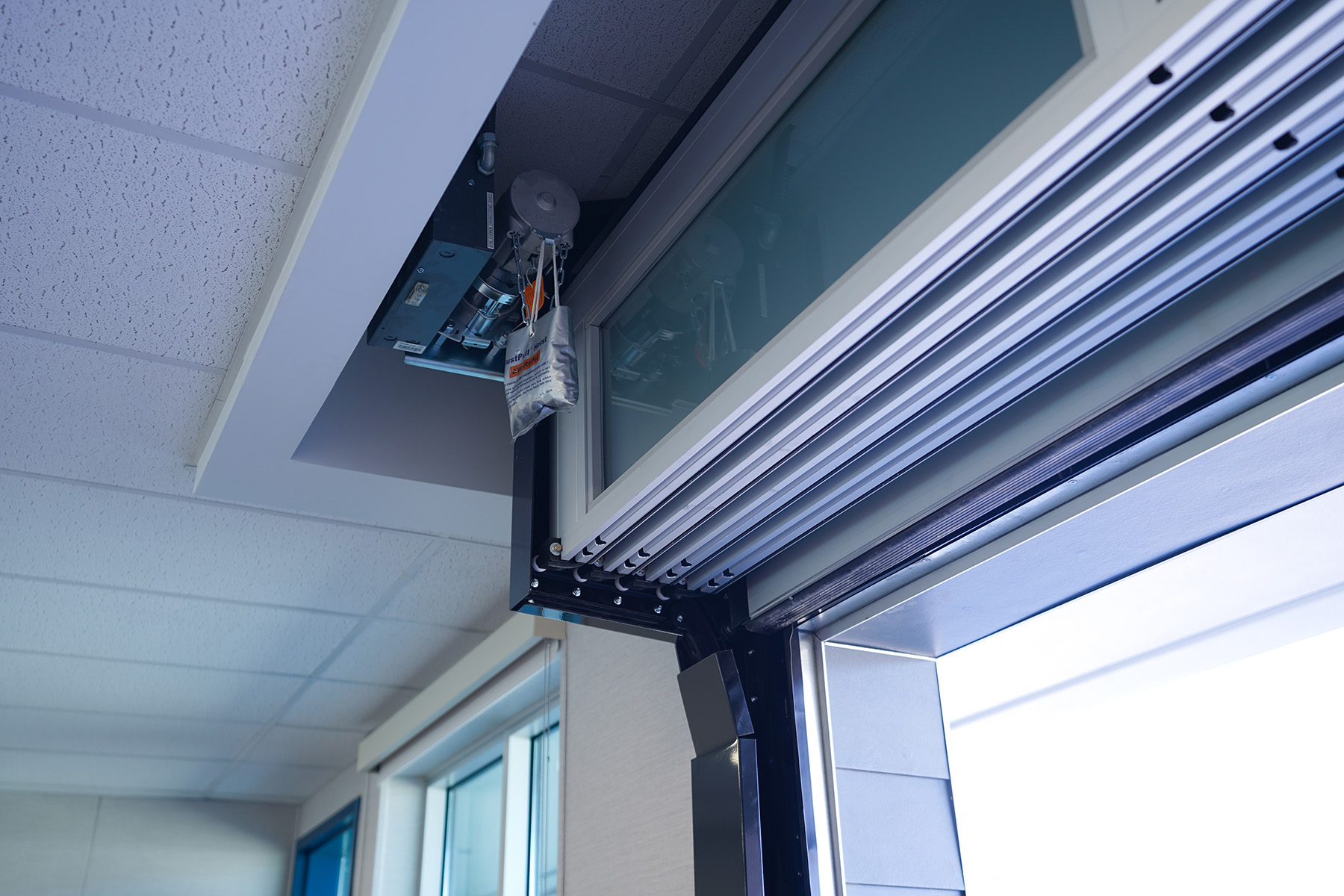

VertiStack Clear utilizes unique, compact sections that stack above the opening without the need for overhead tracks. It takes up minimal ceiling space, so it won't interfere with mechanical, electrical or plumbing fixtures located in the ceiling. The panels can even be recessed into the ceiling if desired, so when the door is opened, you'll barely know it's there. Designed to operate smoothly and quietly, patrons will not be disturbed when it opens or closes.
It also offers a clean, modern aesthetic with no visible hinges or exposed track or cable. VertiStack Clear is available in a variety of glass, acrylic and polycarbonate options along with multiple colors and finishes that allows the ability to match or enhance any aesthetic.

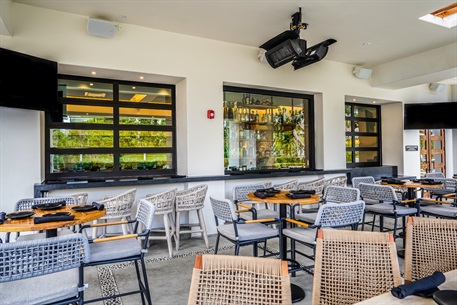

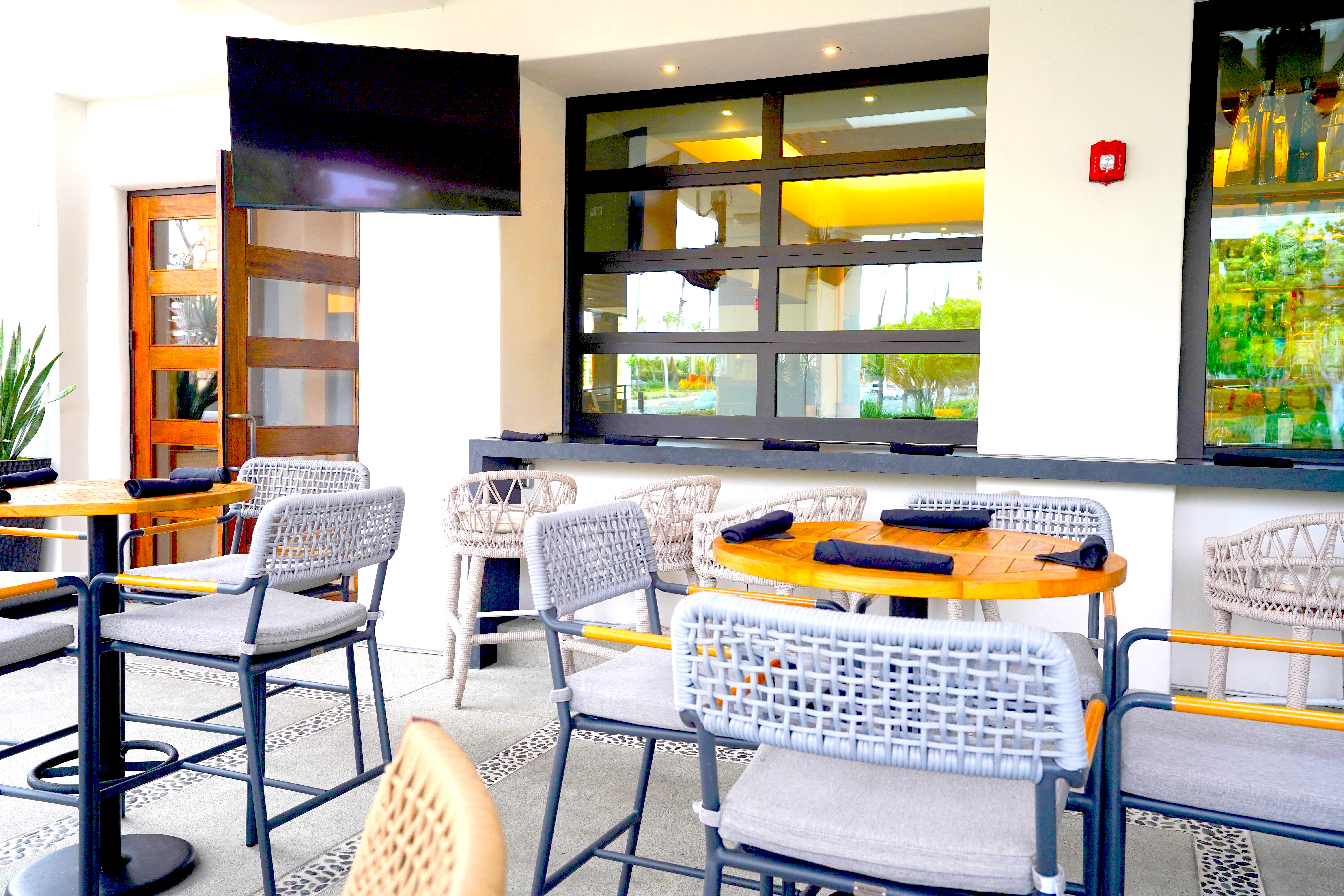

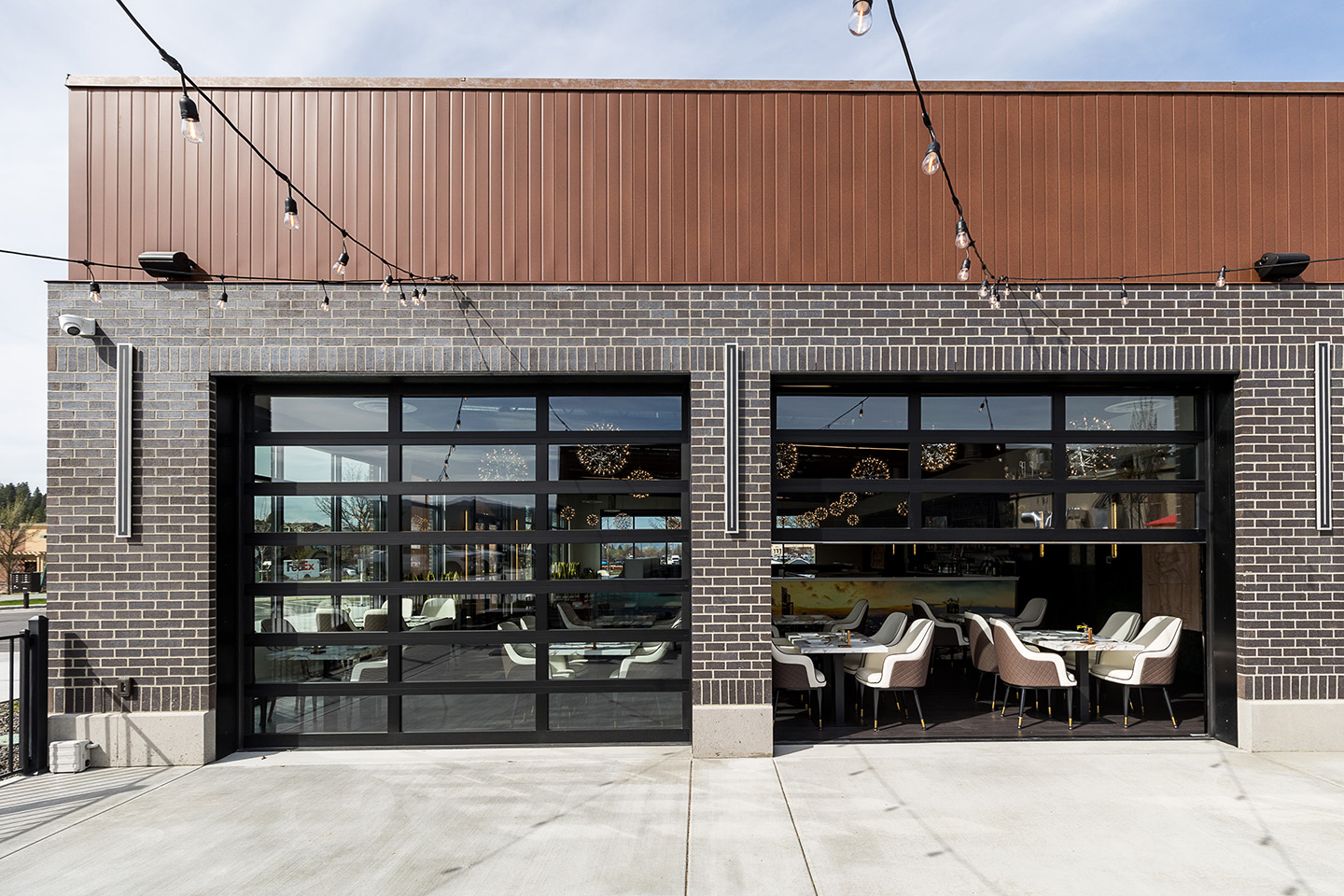

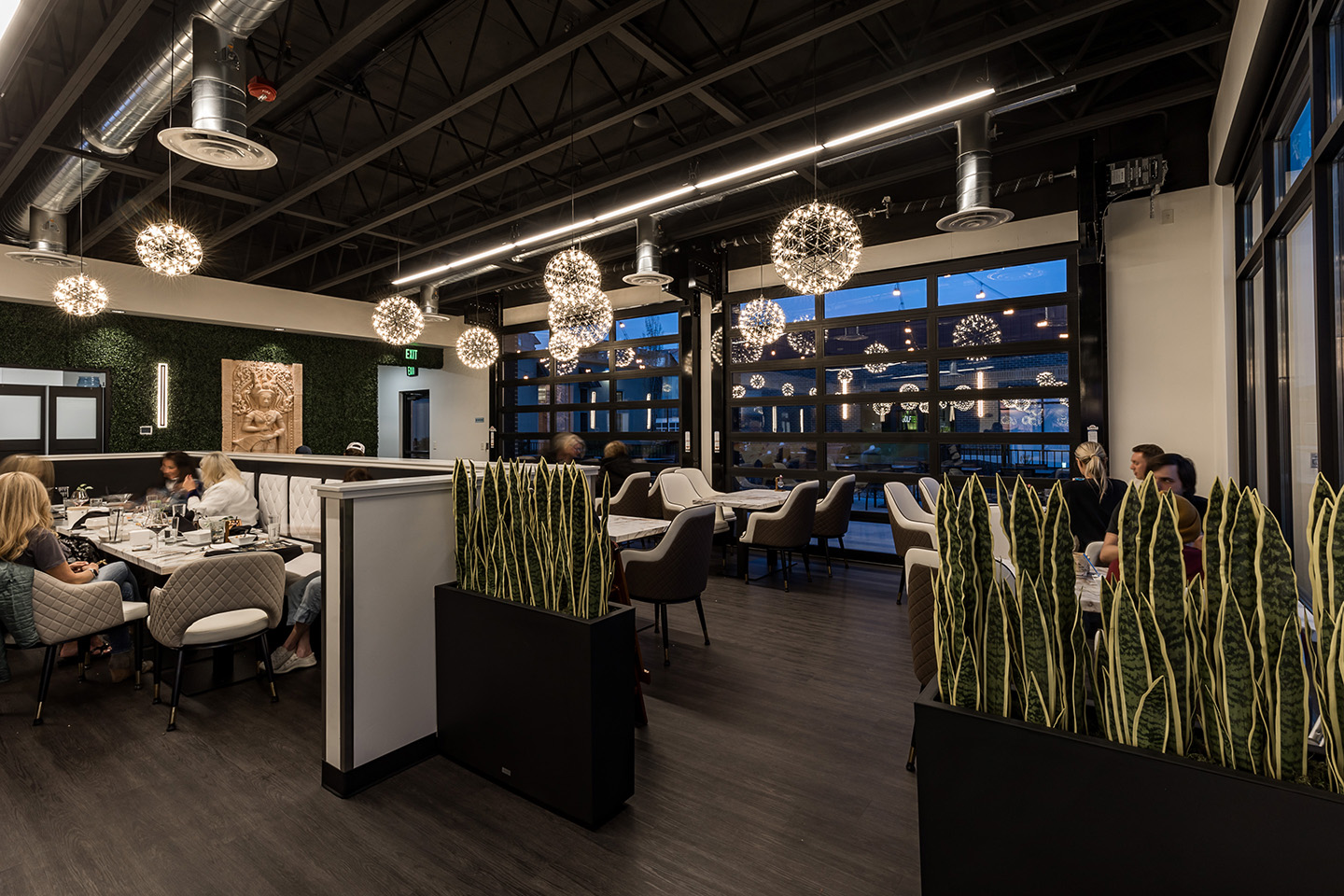

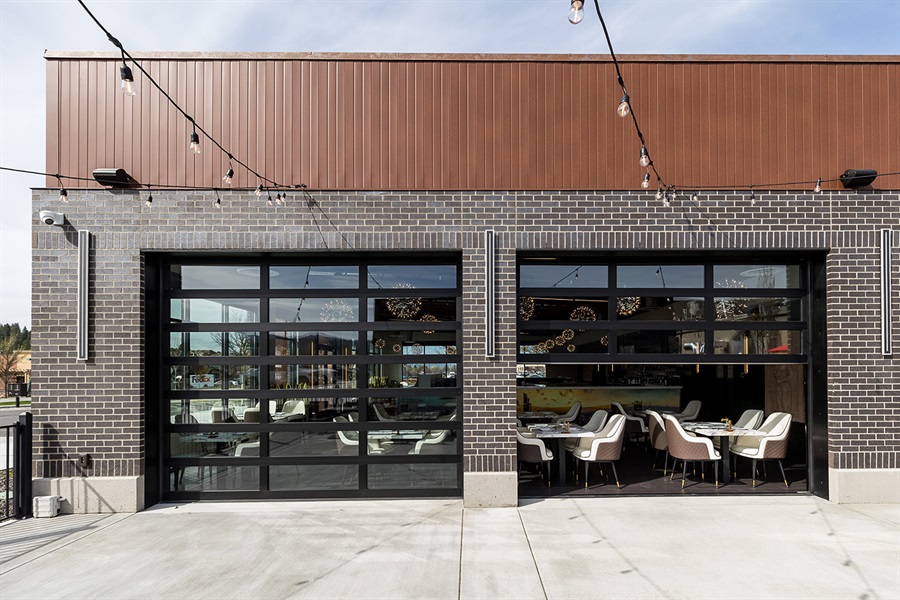

VertiStack Clear allows you to bring the outside in. When in the closed position, the glass panels let in ample sunlight to offer warm hospitality. When in the opened position, indoor seating can be extended to the outside areas, creating a flow between interior and exterior spaces. The built in gasket makes this door IECC compliant for air infiltration, keeping patrons comfortable and reducing energy usage when in the closed position.
Designed for commercial applications, this stacking sectional door can be used in restaurants, retail, office buildings, educational facilities and any application with limited ceiling space.
VertiStack Clear Stacking Sectional Door is available through Master Authorized Dealers and Advanced Authorized Dealers only. To find a MAD or AAD dealer near you, use our Dealer Locator.
Maximum Opening Width: 14'
Minimum Opening Height: 4'
Maximum Opening Height: 14'

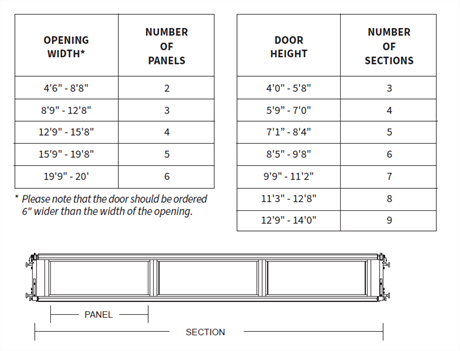

The door width will always be 6" wider than the opening width, so door width range is 5' to 14'6".
Available Thickness: ⅛ ", ¼”, ½” and ⅝". Low-E available on insulated glass.
Safety FeaturesPhoto eye sensors that are integrated into, and concealed by, the guide covers.
Wireless Sensing Edge
A wireless sensing edge is only available on doors that have a height greater than 53”.
VertiStack Clear Windload25 PSF Design Windload

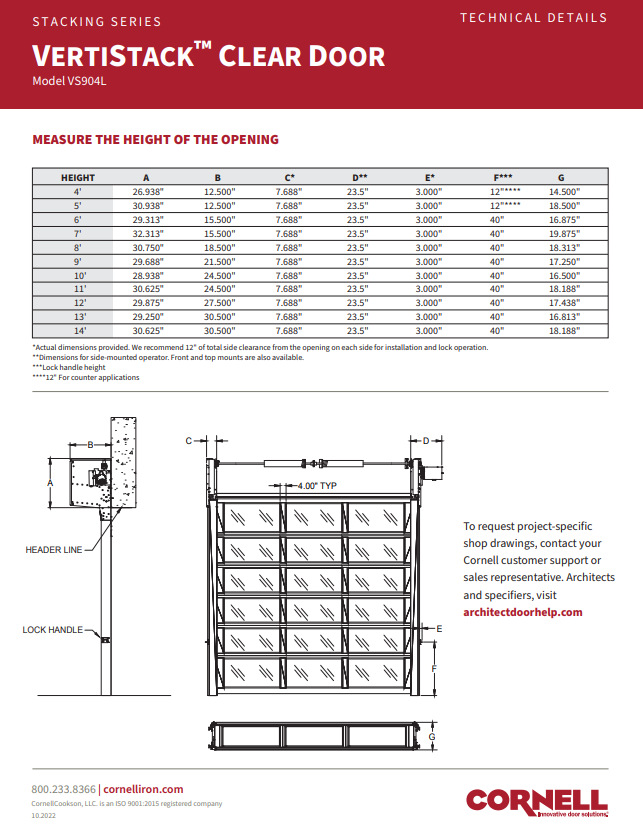

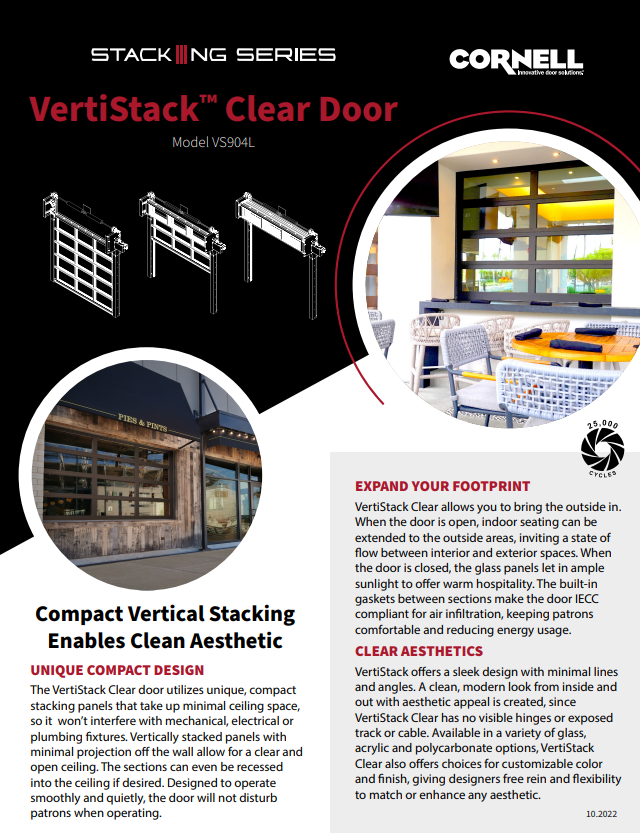

Technical Data Sheets
Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
VertiStack™ Clear Drawing Generator
