Corrosion Resistant Service and Insulated Doors

Insulated Doors

Model Number: ESD10CR (Service), ESD20CR (Insulated)

Our rolling and insulated doors are now stronger and more resilient than ever. Reengineered for the demanding conditions of chemical and corrosive environments, these doors are designed to strengthen your building's structure, reduce long-term repair costs, and safeguard your equipment.

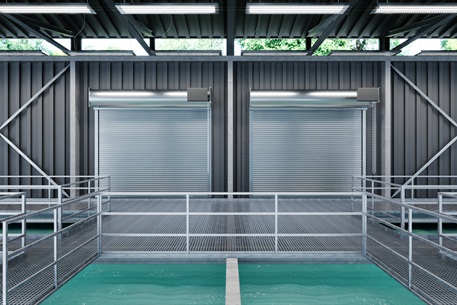

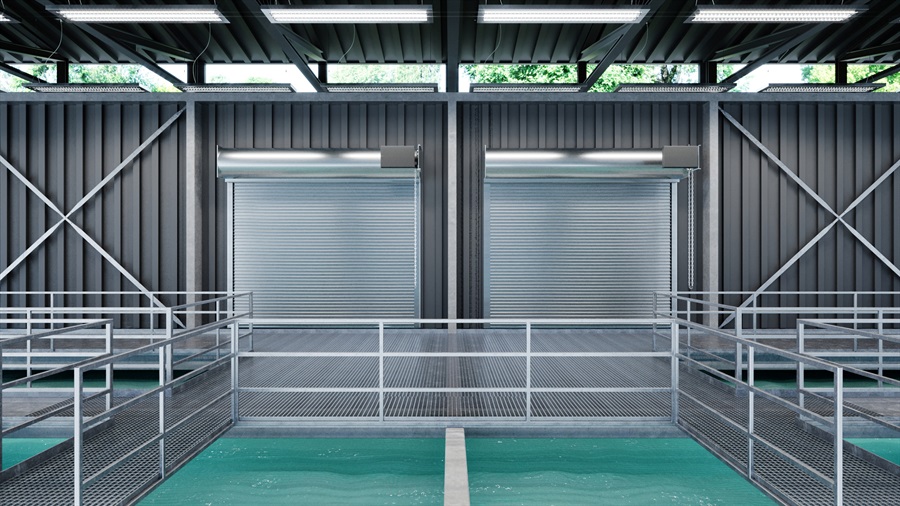

Our standard NEMA 4X operator delivers cycle-after-cycle dependability. Superior strength and corrosion resistance are built-in, with features including corrosion-resistant fasteners, a stainless steel headplate, zinc-coated bearings, a ZRG-coated shaft, and stamped stainless steel endlocks/windlocks. Curtain and guides are available in a 304SS or clear anodized finish to meet your specification. Built to withstand a static windload of up to 40 PSF, each feature ensures a secure and long-lasting solution for water treatment plants, chemical storage facilities, and any other harsh, corrosive environment.

Need A Dealer Need Design Help

Sizes

Standard construction up to 15' wide, 15' high
For openings that fall outside of the standard construction, please contact us

Usage

The doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.

If your requirements call for more than 20 cycles per day, or 50,000 cycles lifetime, visit our line of High Performance Doors.

Standard Materials & Finishes

The Corrosion Resistant Service and Insulated Doors are available in 304SS or Clear Anodized curtain and guides.
Also available in 316 stainless steel in #4 finish.

Available Operators

Corrosion Resistant Service and Insulated Doors comes standard with a NEMA 4X operator which is designed for continuous use.

Aesthetics

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

One-way vision windows allow occupants to only see out offering a perfect balance of natural light, enhanced security, and privacy.

Learn More

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

Performance Upgrades

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Learn more.

High Cycle Springs

Heavy duty springs manufactured to withstand cycles of 100,000.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Vibration Isolator

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by14%+ on doors and grilles with vibration isolators installed compared to doors and grilles without the system
Learn More

Safety & Protection

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Learn More

SafetyGard UL325 Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

Heavy Duty Bottom Bar

The HDBB is 350% stronger than traditional bottom bars, preventing forklift damage to your Service or Insulated Door. The HDBB can pay for itself after the first impact and significantly reduce future maintenance costs.

Learn More

RapidResponse

RapidResponse doors are provided with 3' or 6' of extra curtain, an impactable bottom bar and removable lower guide sections. These features allow for faster repair of slat damage, reducing downtime and maximizing the lifetime value of your door.

Learn More

RapidResponse Options Page

Rolling Door Protector (RDP)

The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.

Learn More

WeatherGard™

Include weather seals at the guides and bottom bar with an internal hood baffle at coil housing. Lintel mounted nylon brush seal also available.

Learn More

Static Windload

Can be configured to withstand a static windload of 40 PSF

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Corrosion Resistant Service & Insulated Doors Drawing Generator

Codes & Listings

ISO 9001:2008
LEED® Compliance

See Codes and Listings page for detailed information.
