Superior Parking Solutions

High performance, fast speeds, extremely quiet and fits into 50% less headroom then other security grilles, MicroCoil has it all.

Extreme 300 Series MicroCoil Grille...A Parking Game-Changer

The Extreme 300 Series MicroCoil Grille is the parking security grille with the smallest headroom available today! It allows you to maximize your clear opening by reducing the security grille's coil size, through patented vertical links. A typically sized standard overhead rolling grille requires 24" of headroom - the same size MicroCoil Security Grille only requires 13". That's nearly a 50% saving on parking garage headroom space! This game-changing design helps parking garages to comply with ADA requirements because it allows taller ADA vans to enter or exit. Building owners can rarely utilize standard rolling safety grilles and can achieve this compliance.

The Extreme 300 Series MicroCoil Security Grille quietly operates at speeds of up to 24 inches per second. The curved vertical links were engineered to reduce vibration - making this a whisper quiet roll down grille perfect for parking garages that also house residents. This roll down security gate can also be configured to withstand up to 40 PSF static design pressure. It comes ready to withstand 20 PSF static design pressure as standard.

To ensure maximum uptime, the Extreme 300 Series MicroCoil Security Grille has a springless design which requires no maintenance, other than routine checks, and no replacement parts for 300K cycles. It accepts virtually all parking gate system activation control devices and features a 2-year operator warranty and a 2-year/300,000 cycle component warranty. This steel gate is operated by our Apex SmartController which features plug and play connections to the operator and standard sensors to reduce installation time. Its LCD screen provides step-by-step instructions for door commissioning, electronic limit setting and status/ error messaging. It is also set-up to easily accept virtually all parking lot gate activation and safety devices.

Security grille curtain finish options include: aluminum mill finish, aluminum clear anodized finish and 300 Series stainless steel with #4 finish

Standard size options include: Aluminum 26'W x 14'H  or Stainless Steel 26'W x 10'H

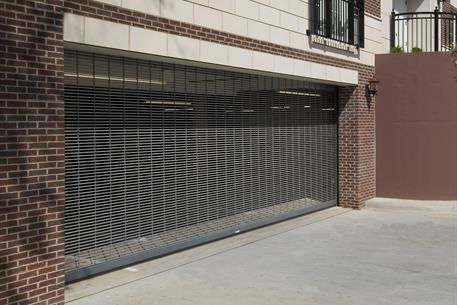

Resident Building MicroCoil Parking Gate System



MicroCoil Parking Gate System

Why choose MicroCoil? Here are some videos to see why!

What is one of your favorite things about MicroCoil – Numbered Links

Sep 13, 2018, 11:32 AM
The patented curved stainless steel links nest to make MicroCoil not only the smallest headroom security grille and to keep their design, each link in numbered In this video, Adrienne Reitz explains how that helps, find out more!
Load more comments
Thank you for the comment! Your comment must be approved first

Curved Links
Small Coil
Parking Garage

Other Parking Application Solutions:

Entrance / Exit     Fire and Smoke

Additional Parking Facility Closures

To view more of our product lines that fit parking needs, click on the titles "Grilles", "Doors", or "Fire Doors" in the chart below to address the unique needs of your parking facility.

Frequent access demands closure products that offer higher cycle life and performance reliability. Building codes mandate fire rated closures for openings in walls that separate garages and drive through bays from areas of human occupancy. Whatever your application, we have a closure solution to best suit your needs!
