UL Listed Roll Up Fire DoorsFire Doors
Model Number: ERD10, ERD11, ERD20 and ERD21

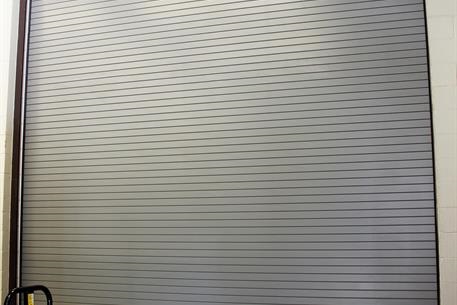

Roll Up Fire Resistant Door Systems
In the event of a fire, our roll up fire doors are engineered to save lives and protect property by compartmentalizing building areas and isolating the incident. In addition to preventing the migration of fire, it also provide security and access control in wall openings that are not a required means of egress.
These fire protectives provide the opportunity for simple, reliable, fail safe activation that seal the openings at the first hint of a fire.
Fire doors are manufactured to your specifications to seal these openings where rated doors are required by building codes when insurance mandates must be met.
Our fire rated rolling doors are also available with an optional SmokeShield® package. This package adds smoke and draft control which is listed to UL1784, assuring that smoke with be compartmentalized with the fire and not spread throughout the facility.
Our rolling fire door is UL listed, Factory Mutual Approved and listed with the California Office of the State Fire Marshall. They are also listed for fire protection ratings of 45 minute, 90 minute, 3 and 4 hours.
A standard UL labeled fire door is available up to 13.5' wide by 12' high.
An oversized UL labeled fire door is available up to 60' wide by 40' high or 1,200 sq. ft.
For openings that fall outside of the standard construction, please contact us
Standard Materials and Finishes

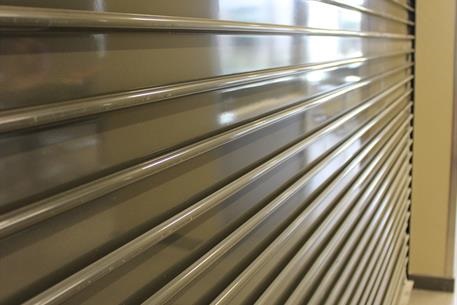

• 22, 20 and 18 gauge galvanized steel:
‒ Exclusive GalvaNex™ finish in Gray, Tan, White or Brown provided as standard
• 20 gauge 300 series stainless steel:
‒ #4 finish
Stamped steel or cast iron endlocks are provided per UL procedure.
Click here for additional material and finishes options and information.
Finish/gauge availability varies. Contact us for detailed finish/gauge availability.
Fire doors can be installed face of wall or between jambs on an interior or exterior wall. Acceptable wall types include masonry, structural steel jambs and drywall construction with structural steel or wood studs.
Battery Back Up Devices
Available for motor, chain and crank operators, these devices prevent fire doors from closing from a power failure.Learn More
Firefly & Firefly BB Release Device
Optional device that ties in to a building alarm system and closes a Simple-Test fire door upon alarm activation, rather than by melting its fusible link.
SmokeShield® Seal Package
Often required by local building codes, our smoke seal adds smoke and draft control.Learn More
Safely and conveniently test and reset the functionality of the fire door at floor level. May be flush or recess mounted.
SpectraShield™ Powder Coat Finish
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.Learn More
Hood and Operator Covers
Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.Learn More
High Cycle SpringsHeavy duty springs manufactured to withstand cycles of 100,000.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
Entrapment Protection Devices
Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.
Guide-Mounted InterlocksAn electrical cutout switch to prevent motor operation if locking device is not first disengaged.
Rolling Door Protector (RDP)
The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.
Static Wind LoadCan be configured to withstand the full range of specific wind load requirements including missile impact ratings.
Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
